E-Mon® Series Global User Manual
Overview
Page | 24
54-000-01-ENG01-0121
3.4. Meter Connections
The E-Mon Energy meters have connection terminals for current sensing using external
current sensor. It requires integration of CS of relevant rating to be installed as per
specifications. The CS configuration is done using the front panel display by entering primary
and secondary values through the Setup menu.

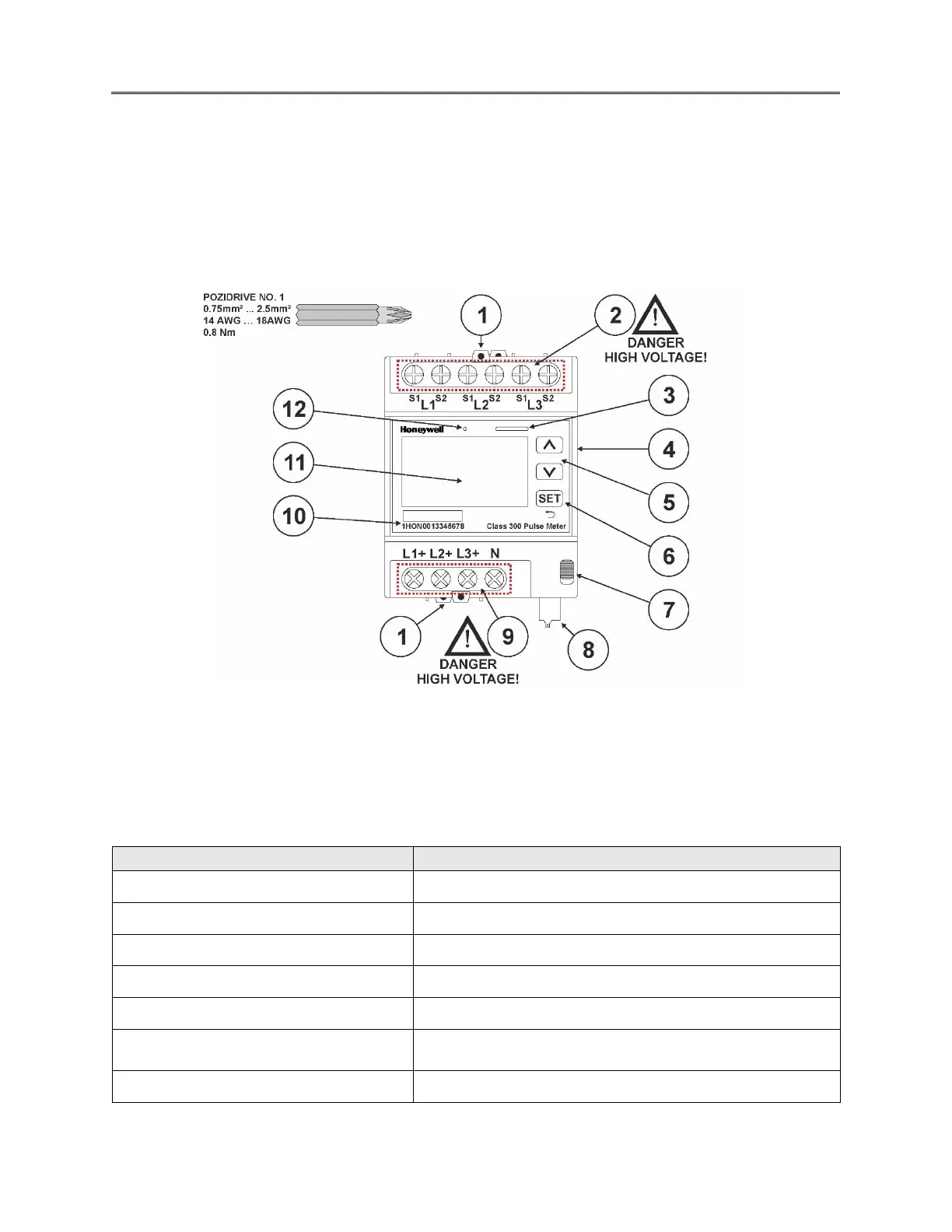

Figure 8. E-Mon meter overview
The meters are designed for implementation in 3-phase networks with various connection
topologies. The meter is ideal for use in 3 wire, 3-phase, Delta and Wye connections.
Table 4. Meter Connections
Description
Function
1. Terminal Sealing Slider
Used to seal the terminals
2. Current sensor terminal
Terminal for CS/ inputs for current measurement
3. Status LED
Display Meter Status
4. Side Label
Meter Information
5. UP/Down button
Navigation (Up/Down or Right/Left)
6. Set/Back Button
Short Press – Confirm
Long Press – Back
7. Sealable set-up slider
Lock setup with Sealable slider
