7. The mobile app displays list of discovered meters.
8. Check for the meter serial number as it connects with the phone and tap on the correct
number to start pairing.
9. The meter will display a 6-digit pairing code on the front panel.
10. Confirm the code on your mobile App to connect with the meter.
11. It takes a few seconds to sync and the users have choice to add more meters if
necessary.
12. Perform commissioning using the ‘Start commissioning’ option.
5.2.2. Wiring check using Application
Use the E-Mon App for all the commissioning and readouts. The mobile application allows
you ease of checking the wiring status of the connections as mentioned in 4.4.3 Setup Menu.
Wiring check alarm is raised in case of bad connections and discrepancies in wiring values as
entered during meter commissioning. Refer to the Application guide for more information on
the E-Mon App.
• In event of alarm, tap on the error message “Missing Voltage, PF error” and
acknowledge the alarm.
• While pairing during the wiring check alarm, the LED indicates BLE signal with 1
st
priority with blue blinking for pairing status as per mentioned in section 3.2.6 LED
Signals.
• Post pairing, go to the dashboard and acknowledge the wiring check alarm.

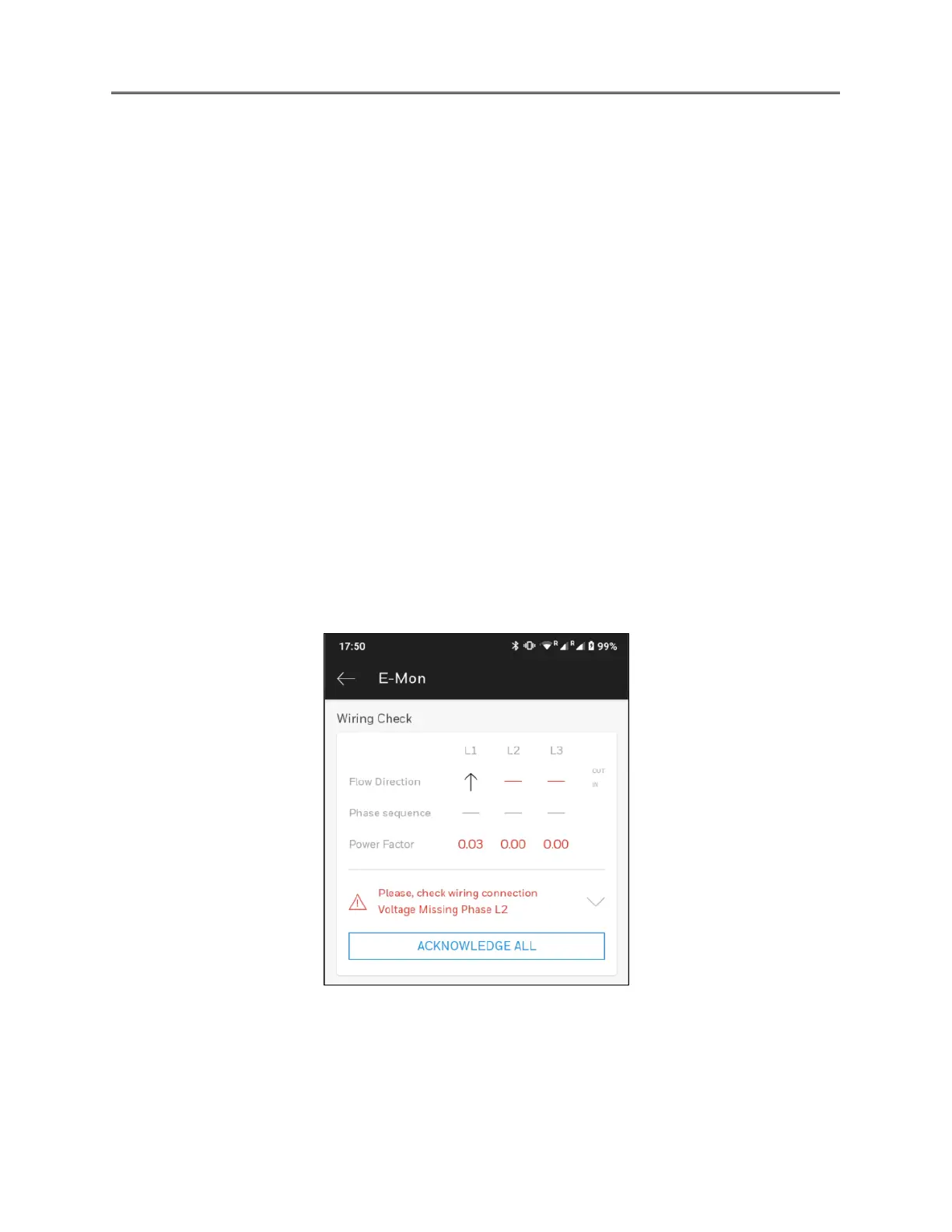

Figure 19. Wiring Check using App
