1.4.2 Cartridge Media Protection
To protect stored media (programs and data) on a cartridge from being accidentally erased,
you must move the protect switch (lower left in Figure 1-4) to the write protect position.
CAUTION
DON'T attempt to move the protect switch on the cartridge while the cartridge is installed in
the drive.
If the protect switch is moved to the unprotected position, the cartridge is free to be written
on by the Enhanced Micro TDC 3000 system—data and programs may be lost.
1.5 EMC DIRECTIVE
The Enhanced Micro TDC 3000 system is being brought into compliance with European
guidelines for ElectroMagnetic Compatibility (EMC). The European EMC directive
(89/366/EEC) requires that an electronics product operate reliably in its intended EMC
environment. It also requires that the product not detrimentally affect other products
operating in their own environment.
Eventually the Enhanced Micro TDC 3000 hardware will display a product certification
label to indicate the hardware is in compliance. This label is placed inside, at the bottom
front of the tower. As shown in Figure 1-5, a “CE” logo on the product label indicates the
product is in compliance with the European EMC directive along with other descriptive
information about the product.
FO
EN
M
A
TDC 3000 SYSTEM
MODEL NO MWXX 'SID' - ***
POWER 120
MAX CURRENT AMPS
HZVAC 60
PHOENIX, ARIZONA
L
511XXXXX - ***
10.0 X1
S
*** = 000 to 999
(3 Numeric Digits to Identify Each
Bay Within a Console Complex)
System Identification Code 'SID'
(3 Alpha / Numeric Character
That Identifies Customer)
120 VAC = 10.0 x 1 Right Tower
12.5 x 1 Left Tower
230 VAC = 5.0 x 1 Right Tower
6.25 x 1 Left Tower
Current
120 VAC = 120
230 VAC = 230
Power
XX = 01 to 99
(2 Numeric Digits For
Each Micro Complex)
120 VAC = 120
230 VAC = 230
Power
European Compliance Logo
53648
Part Number of Unit
511XXXXX- ***
8 Digits
(Build Options
*** = 100/200
(100 = 120 VAC)
(200= 230 VAC)
12.5 X1

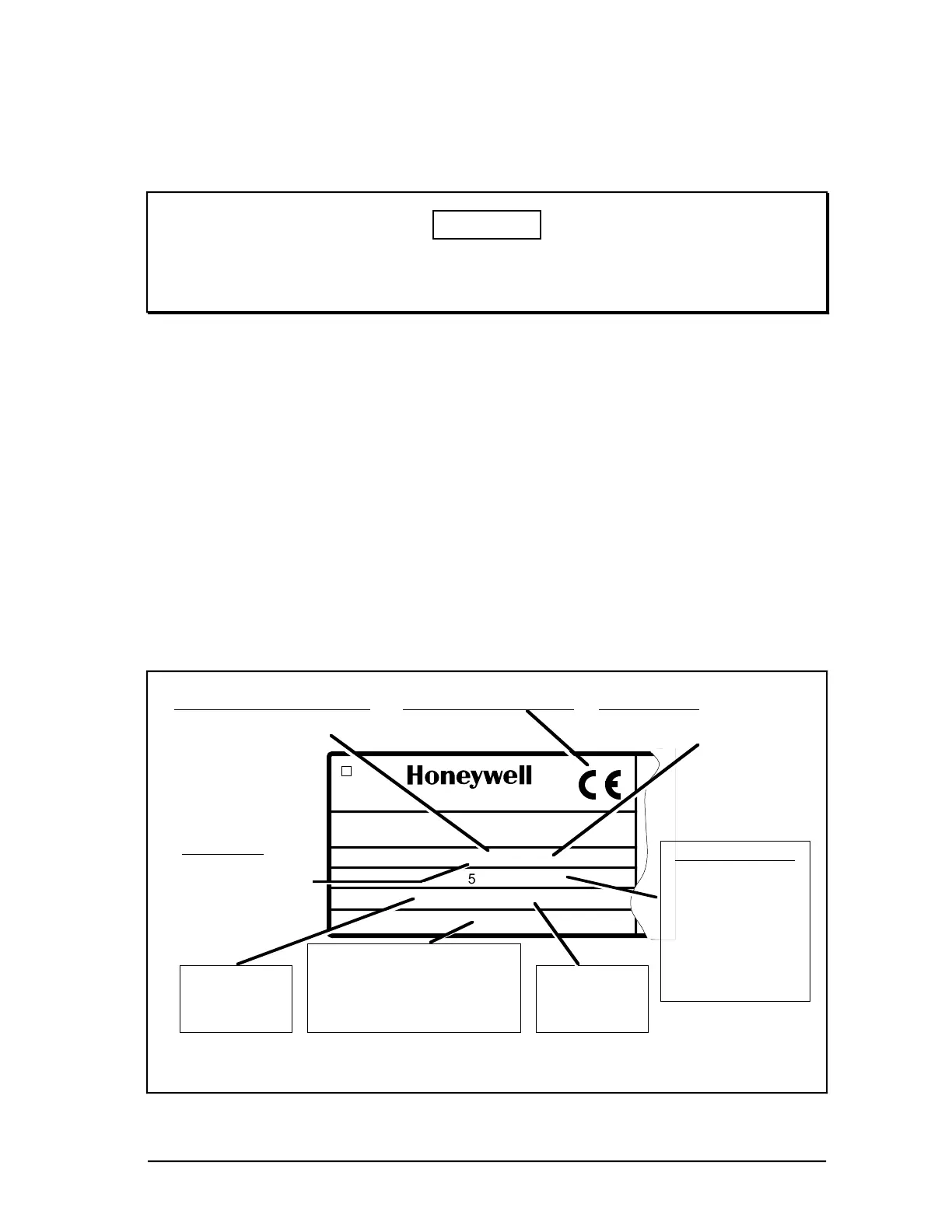

Figure 1-5 — Product Certification Label
