Enhanced Micro TDC 3000 User’s Manual 2-8 9/95

2.7.1

53284

R12

R11

R10

J1 J2

TP485

51304776-100

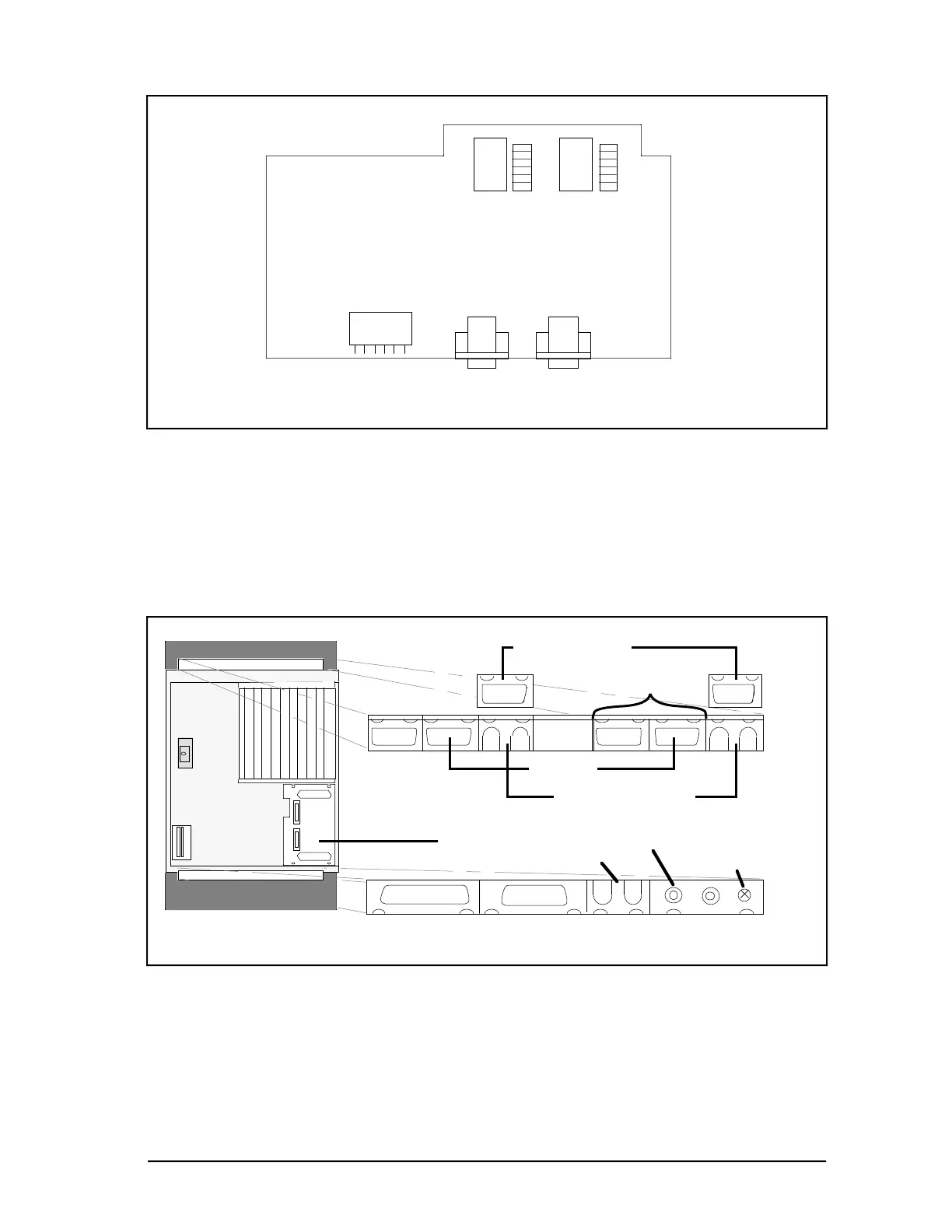

Figure 2-4 — TP485 I/O Board

3. The standard cabling connections you will make in the following steps are on the

transition panels in Figure 2-5. Note there are two exposed transition panels—one at

the top of the center section and another at the bottom (see Figure 2-5). The panel has

connectors and cable clamps on it that will be used to secure cables you will install.

Both towers have the same locations for specific connector/clamp brackets but the

bracket types in certain locations may differ depending on the options installed.

53285

Optional PLCG

Relay Panel

Printe

TPLCN

Blank

UCN Taps

Ground (Option)

Options:

PLCG, CG, NG

UCN A & B

Cables (Option)

Keyboard

CRTCRT

Optional Second

US In Tower

Touchscreen (Option)

Trackball (Option)

Figure 2-5 — Transition Panel Connections—Tower #1 (left) or #2 (right)

4. Note the Optional PLCG Relay Panel in Figure 2-5 above. It can be mounted above the

transition panel, as shown, in the tower containing an optional EPLCG (see Section

2.8.5).
