17 Top hat rail mounting kit (Part No. 788652)
In the FACP IQ8Control C / M can be installed a top hat rail mounting kit (optional). This mounting kit comprises
of a mounting base, a standard 35 mm top hat rail (C-profile mounting), M5 x 30 bolts, M5 x 50 screws and insert
nuts. In order to facilitate mounting and removal, the top hat rail is fitted to the mounting base by means of two
screws.
Variant 1
With the kit a maximum of two optional module housings (Part No.788603 or 788603.10) can be installed inside
the panel housing. The module housing for top hat rail mounting accepts all the format 72 x 65 mm or 82 x 72 mm
(W x H) FACP boards e.g. esserbus
®
transponder, Kit redundant transmission path.
Variant 2
In addition to the module housing, an optical fibre converter (Part No.784763 / 64) with a clip for top hat rail
mounting may be installed inside the panel housing.
Mounting
Mounting example – Variant 1:
Top hat rail mounting kit with module housings (optional)
Components of the Top hat rail mounting kit
4
3
2
1

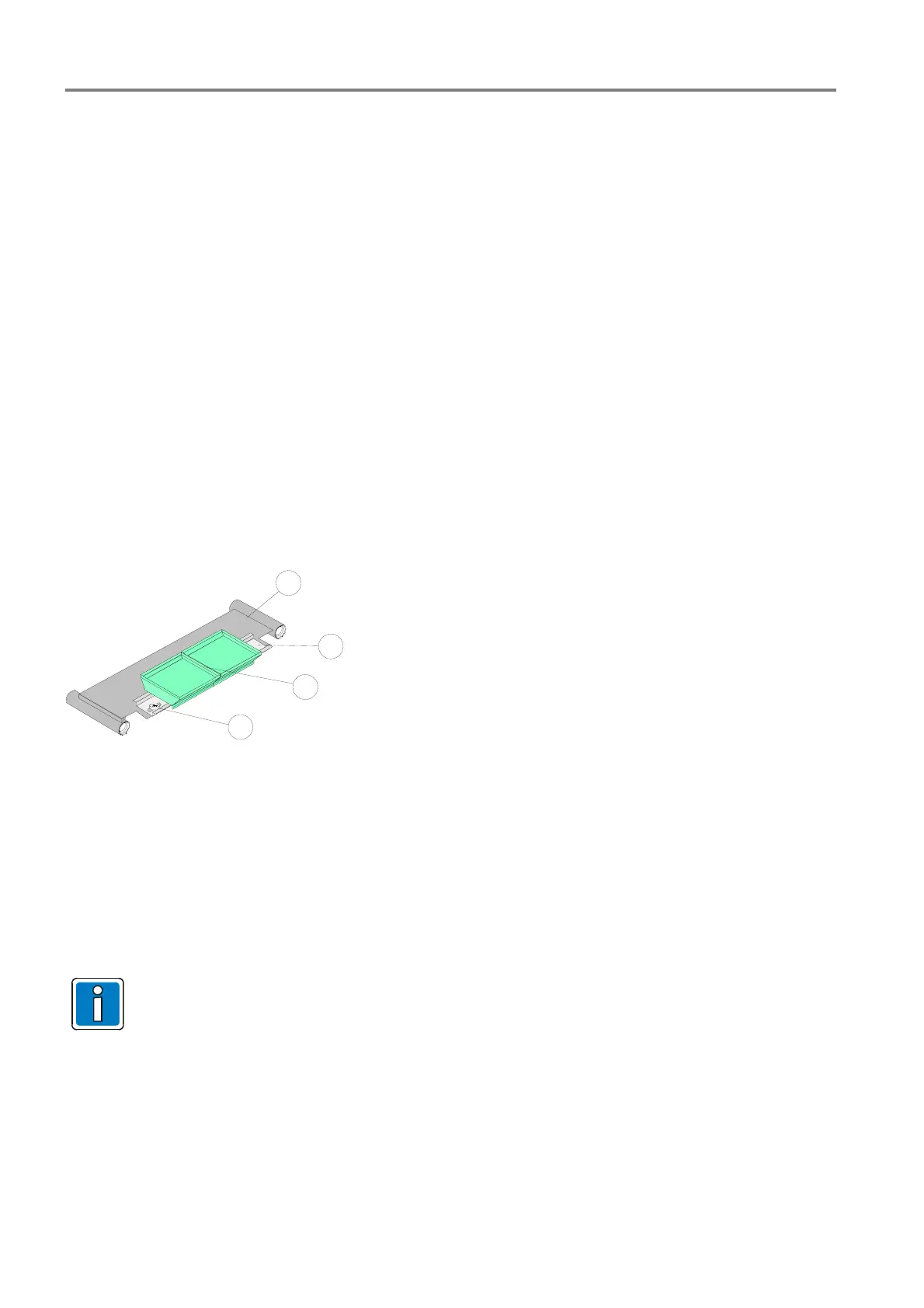

Fig. 107: Components of the Top hat rail mounting kit

Mounting base for Top hat rail

Fastening screws for Top hat rail

2 x Module housing Part No.788603 / 788603.10 (optional)

Standard Top hat rail, 35 mm
See product group catalogue 'fire alarm technology' and documentation on the mounting rail
installation kit for further information.
