Honeywell ESSER IQ8Control C

Fire Alarm Control Panel IQ8Control C / M
FB 798951.10.GB0 / 04.15 93
9.2 Overview – micro module terminals
Basic module
IQ8
Control
X3
micro module
1 2 3 4 5 6 7 8

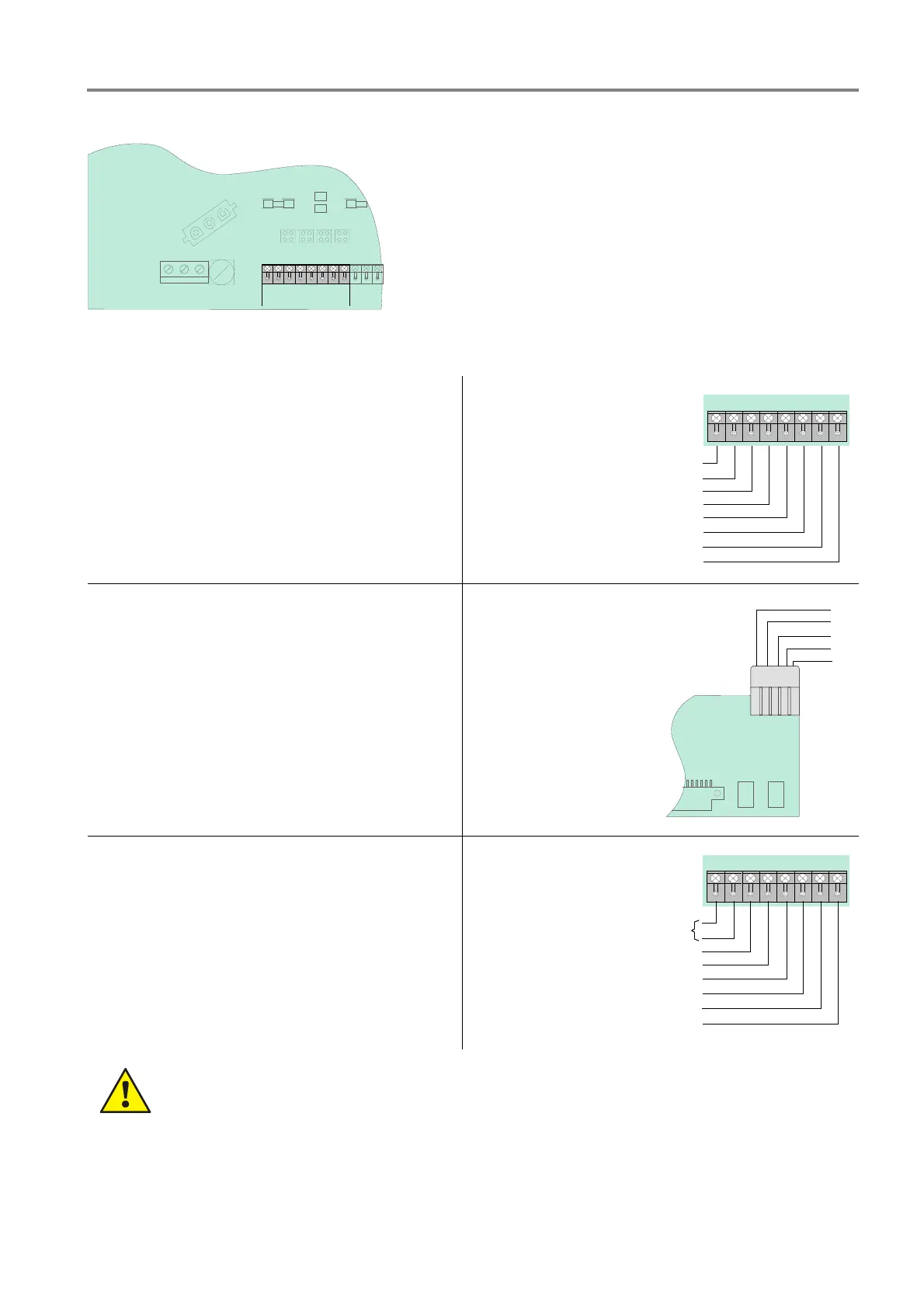

Fig. 82: Overview – micro module terminals
esserbus
®
module
(Part No. 784382 / 784382.10 / 784382.D0)
for max. 127 loop devices, e.g. Fire detectors series
IQ8Quad, 9200 and esserbus
®
-transponders,
dividable in 127 individual zones
Quiescent current: approx. 25 mA.
Total current for loop devices max. 40 mA
A +
A -
B -
B +
not used
1
23456
78
not used
not used
not used
esserbus
®
PLus module
(Part No. 804382 / 804382.10 / 804382.D0)
or max. 127 loop devices, e.g. Fire detectors
IQ8Quad, series 9200, esserbus
®
-transponders and
loop compatible alarm devices, dividable in 127
individual zones
Quiescent current: approx. 25 mA.
Total current for loop devices max. 180 mA
A +
A -
B -
B +
B
-
B
+
A
-
A
+
not used!
Master box activation module (Part No. 784385)
To connect and control the MFAB operation.
Quiescent current: approx. 15 mA.
12
345 6 78
not used
MFAB reset (+ 12 V oder + 24 V / 300 mA)
+ MFAB
PPrimary loop to MFAB (+ MFAB)
GND
unlock fire dept. box (max. 300 mA)
acknowiedgment
Observe permitted torque (max. 0.4 Nm) of the terminals!
