Fire Alarm Control Panel IQ8Control C / M

FB 798951.10.GB0 / 04.15 17

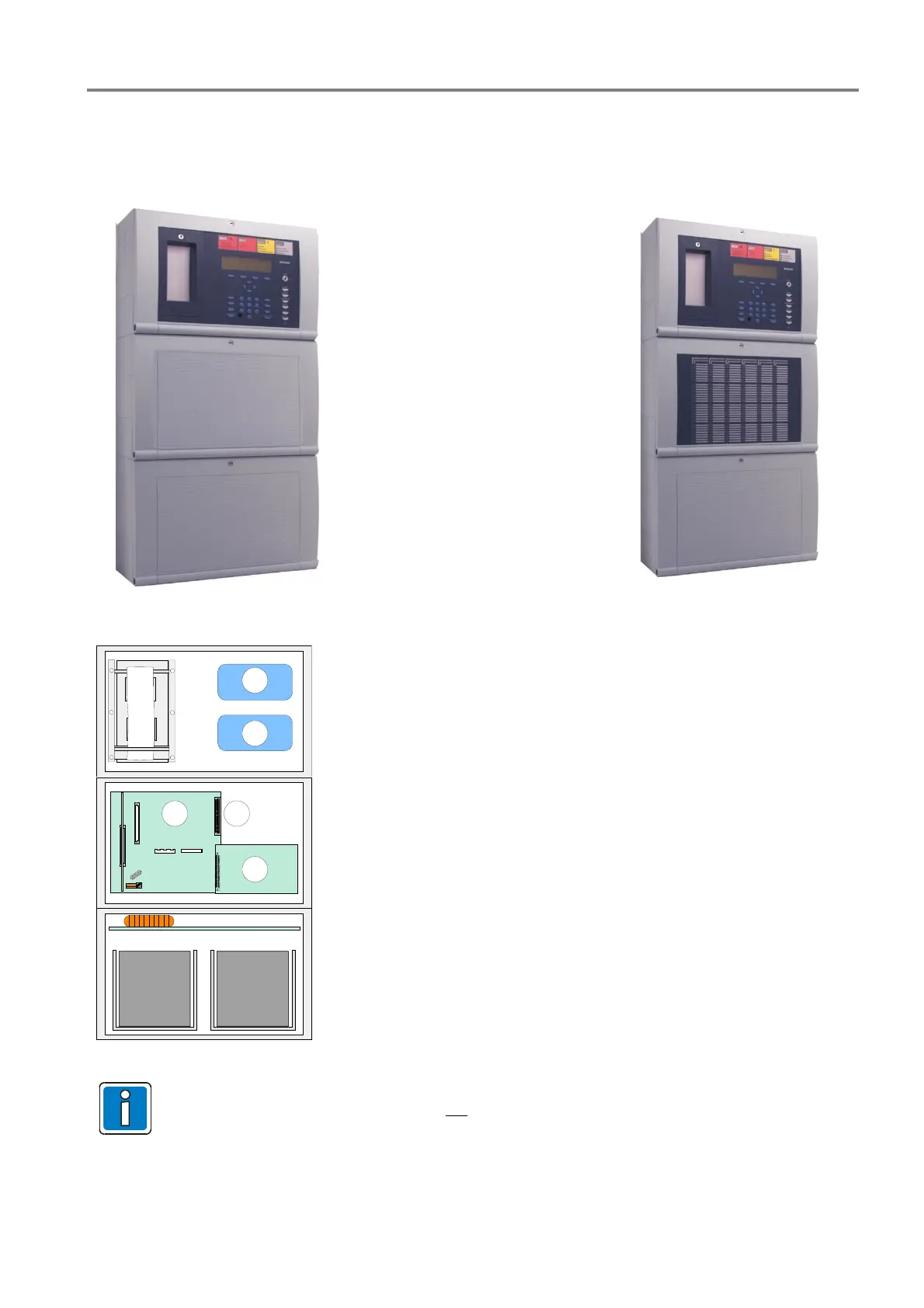

Three part housing with integrated printer

The integrated printer and the operating module front are mounted in the upper housing. Due to the depth of the

printer, the Basic module and all of the plug-in cards are integrated into a separate housing beneath. The

emergency power supply with max. two 24Ah batteries can be installed into the lowest housings.

Extension housing 789304

Extension housing 789303

Fig. 9: Three part housing with integrated printer



Assembly area for esserbus

transponders



Basic module / power supply module /

slot for micro module



Alternatively Field device module

(without micro module slot)

or Field device module (with 1 micro module slot)

or Extension module (with 1 micro module slot)

or Extension module (with 3 micro module slots)

on slot 1

Part No. 772479

Part No. 772477

Part No. 772478

Part No. 772476



Extension module (with 3 micro module slots)

on slot 2

Part No. 772476

Fig. 10: Location of the components in a three part housing

Ensure that the arrangement of the assemblies corresponds with the presentation shown here during

this configuration. Another distribution is not possible due to the cable length of the operating module

front, the integrated printer and the battery connection cable.
