Honeywell ESSER IQ8Control C

Fire Alarm Control Panel IQ8Control C / M
72 FB 798951.10.GB0 / 04.15
7.1.5 essernet
®
module
The essernet
®
module permits networking up to 31 essernet
®
devices, such as e.g. ESSER Fire Alarm Control
Panel System and management systems. Additionally optional gateways are available to connect standard
devices to the network.
essernet
®
Management system
Serial
essernet
®
-Interface
Indicating and operating panel
Fire alarm control panel
IQ8Control M
Fire alarm control panel
IQ8Control M
Fire alarm control panel
IQ8Control C
Fire alarm control panel
IQ8Control C

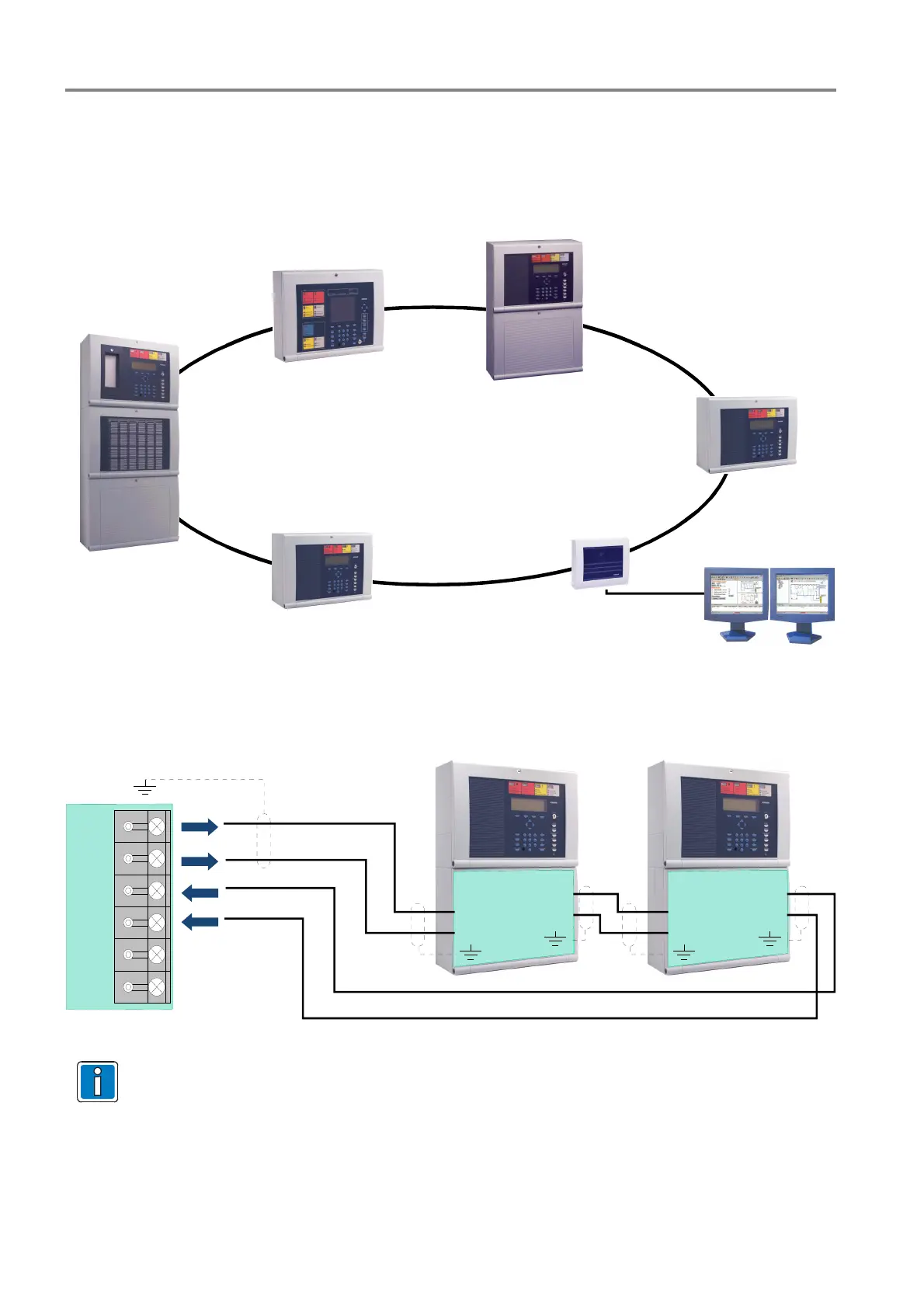

Fig. 62: Example - essernet
®
with different devices
Terminal card assignment
essernet
®
module
1
2
3
4
5
6
do not connect!
do not connect!
essernet
®
module
3
4
1
2
FACP 1
FACP 2 FACP 3
3
4
1
2
Fig. 63: Connection principle (copper cable, conventional) incl. cable shielding in essernet
®
In a essernet
®
you may only use essernet
®
modules with the same transmission speed.
The EMI-protection / the extended EMI-protection of the LAN network must be implemented by external
EMI protection devices.
