Honeywell Excel 10 W7752D User Manual

EXCEL 10 FCU CONTROLLER LNS PLUG-INS USER GUIDE
EN2B-0285GE51 R0909
11
Controller Performance Specifications
Power:
W7752D and W7752E; W7754K,M,N,P
230 Vac +10%, -15%, 50/60 Hz.
W7752F and W7752G
115 Vac +10%, -15%, 50/60 Hz.
W7752J
100 Vac ±6%, 50/60 Hz.
W7754L
24 Vac ±20%, 50/60 Hz.
Operating Temperature:
32...122°F (0...50°C).
Shipping/Storage Temperature:
-40...+158°F (-40...+70°C).
Relative Humidity:
5% to 95% non-condensing
Inputs:
Temperature Sensor:
20k ohm NTC
Setpoint Potentiometer:
10k ohm
Digital Input:
Closed ≤ 400 ohms
Open ≥ 10 K ohms
Outputs:
Triac voltage range:
24 Vac ± 20%.
Triac max. current ratings:
250 mA continuous
650 mA surge for 30 sec.
IMPORTANT:
When any device is energized by a triac, the device
must be able to sink a minimum of 15 mA. If non-
Honeywell motors, actuators, or transducers are to
be used with Excel 10 FCU Controllers, compatibility
must be verified.
Fan relays voltage range:
20 to 253 Vac
Fan relays max. current rating:
3 A
Electric reheat relay voltage range:
20 to 253 Vac
Electric reheat relay max. current rating:
10 A
6 A (UL916)
Interoperability
The Excel 10 FCU Controllers use the LonTalk protocol. They
support the L
ONMARK Functional Profile # 8020 “Fan Coil Unit
Controller”, version 2.0. Fig. 8 shows the implementation
used.
Hardware
Output
Fan Coil Unit Controller
Object #8020
Mandatory
Network
Variables
Manufacturer
Defined
Section
Optional
Network
Variables
Configuration Properties
nv10
nviWaterTemp
SNVT_temp_p
nv9
nviSetPtOffset
SNVT_temp_p
nv8
nviApplicMode
SNVT_hvac_mode
nv7
nviOccCmd
SNVT_occupancy
nv6
nviFanSpeedCmd
SNVT_switch
nv16
nvoEffectSetPt
SNVT_temp_p
nv15
nvoSpaceTemp
SNVT_temp_p
nv14
nvoReheat
SNVT_switch
nv13
nvoDischAirTemp
SNVT_temp_p
nv12
nvoLoadAbs
SNVT_power
nv11
nvoTerminalLoad
SNVT_lev_percent
nv2
nviSetPoint
SNVT_temp_p
nv1
nviSpaceTemp
SNVT_temp_p
nv5
nvoFanSpeed
SNVT_switch
nv4
nvoCoolOutput
SNVT_lev_percent
nv3
nvoHeatOutput
SNVT_lev_percent
nv19
nv17
nvoEffectOcc
SNVT_occupancy
nviDischAirTemp
SNVT_temp_p
nvoEnergyHoldOff
SNVT_switch
nv18
nviEnergyHoldOff
SNVT_switch
nc49 - nciSndHrtBt SNVT_time_sec mandatory
nc52 - nciMinOutTm SNVT_time_sec optional
nc48 - nciRcvHrtBt SNVT_time_sec optional
nc17 - nciLocation SNVT_str_asc optional
nc60 - nciSetPnts
nc59 - nciNumValve
SNVT_temp_setpt
SNVT_count
mandatory
optional
Hardware
NOT SUPPORTED.
Input
nv20
nv21
nvoUnitStatus
SNVT_hvac_status
nvoSensorOcc
SNVT_occupancy
nvoDigitInState
SNVT_switch
nviSensorOcc
SNVT_Occupancy
nviEmerg
SNVT_hvac_emerg
nviReheatRelay
SNVT_switch

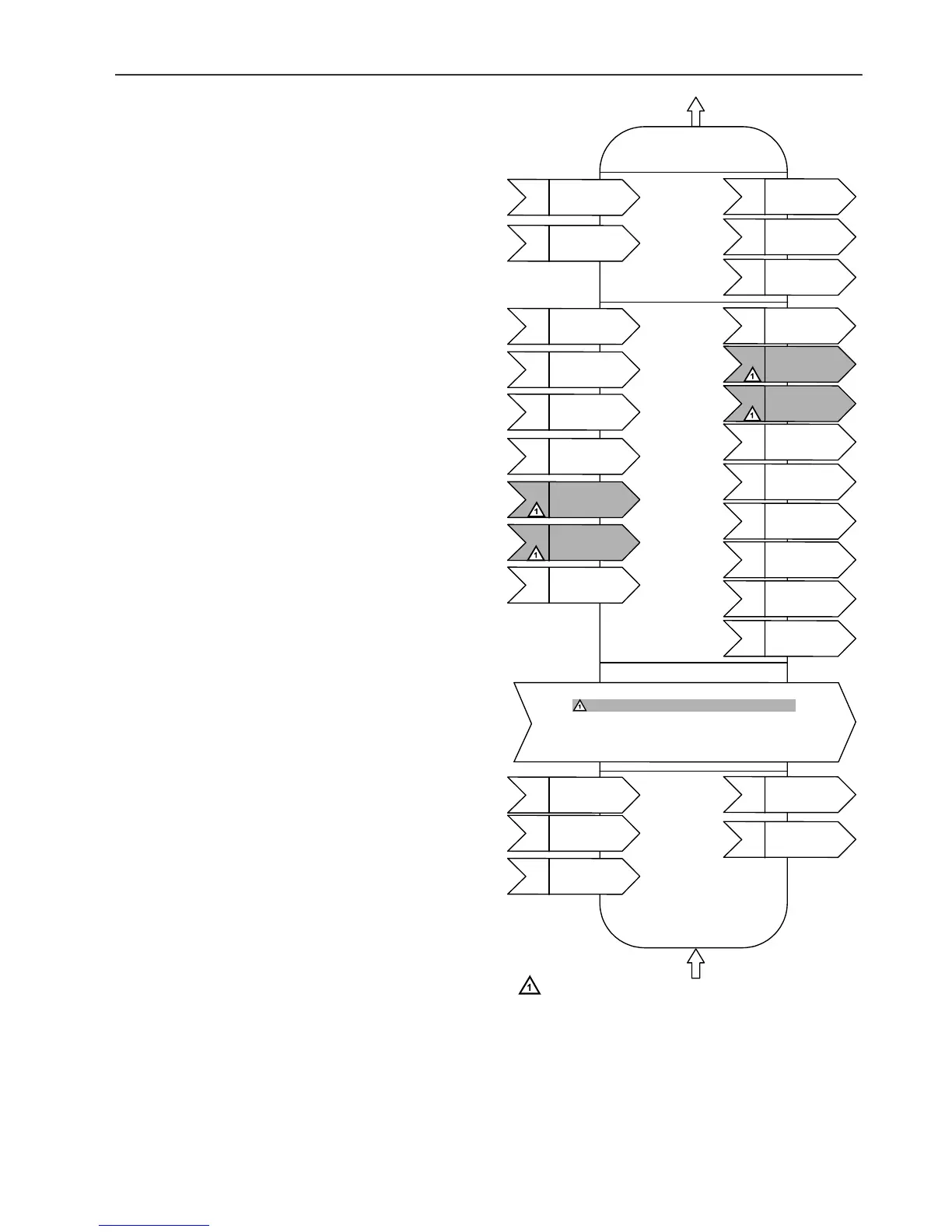

Fig. 8. L
ONMARK FCU object profile
