Galaxy Dimension Installer Manual
3-12
Ethernet Module
The Ethernet Module is an optional add-on to the Galaxy control panel. It is a highly intelligent and compact
module, combining alarm signalling, remote servicing and integrated facilities over Ethernet LAN and/or WAN.
The Ethernet Module connects to 10 Base T Ethernet networks both supporting UDP/IP and TCP/IP
protocols.
The Ethernet module supports the following features:
• Full alarm signalling on SIA
• Microtech protocol signalling with Event Monitoring Software
• Remote servicing via remote servicing software
Ethernet Module

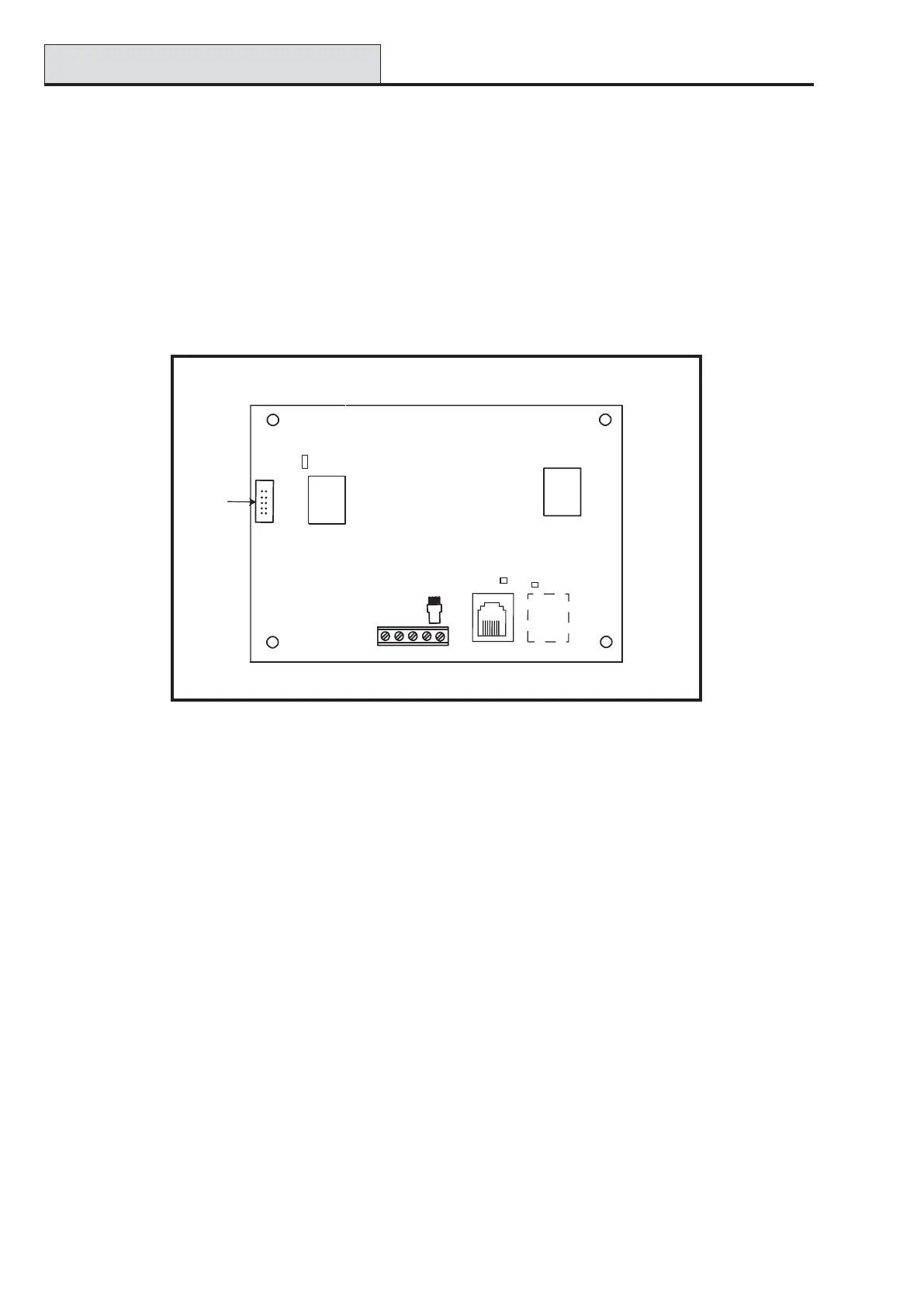

Figure 3-5. Ethernet PCB Layout
NOTE: The position of components on the Ethernet PCB may vary with different hardware revisions
Configuring the Ethernet Module
The added Ethernet Module is configured into the system on exiting from engineer mode and is allocated
keypad address 15 (B). If the message XX Mod Added [<],[>] To View is displayed, the system has
recognised that a new module is present. Press the A or B keys to confirm that com 4 has been added. If
this message is not displayed or the Ethernet Module is not on the list of added modules, then the Ethernet
Module is not communicating with the control panel.
The flash rate of the red LED (LED3) on the Ethernet Module indicates the status of the communication with
the control.
Ethernet Communication
The green LED (LED1) is illuminated when the Ethernet Module is connected to Ethernet.
The amber LED (LED2) flashes when the Ethernet Module is sending or receiving data.
For further information regarding the Ethernet Module, refer to Ethernet Module, Installation Instructions
(II1-0080).
Processor
Programming
Header
Engineer
Socket
S
+
-
AB
Line
Processor
SKT1
SKT2
LED1
LED2
Rev. 1.0
LED3
