Honeywell HD5 Series User Manual

Document 800-04763 Rev B 15
08/09

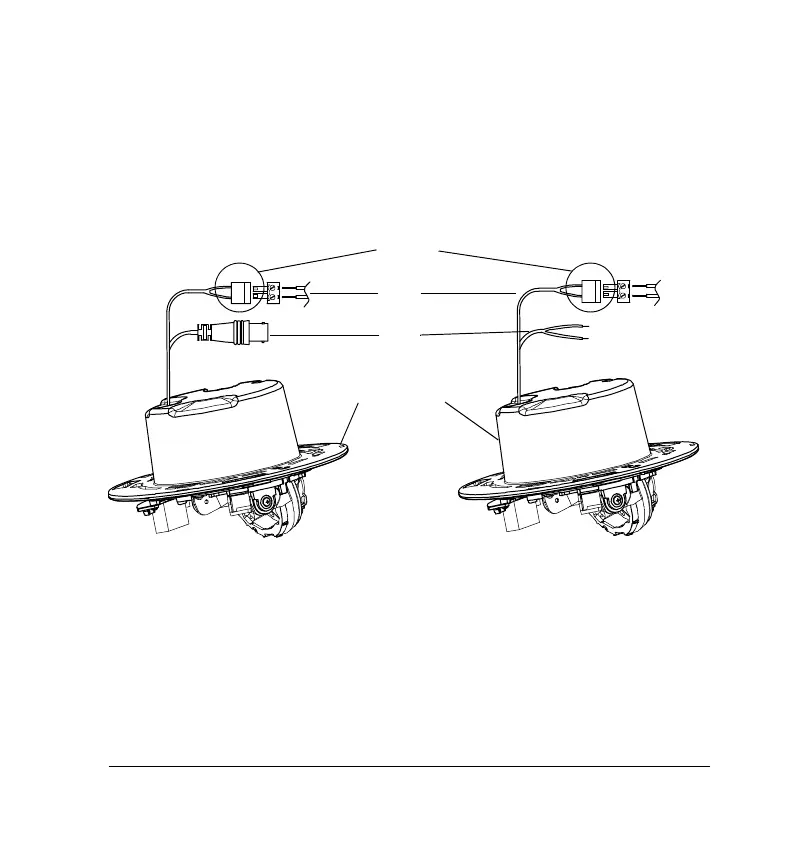

Cable Options
The HD5 is shipped with two wiring configurations for the video
connection: BNC or UTP (twisted pair). To connect the power, attach the
green connector terminal to the two bare wires.
1. Connect the BNC or UTP video connection.
The yellow wire is the positive connection.
The gray wire is the negative connection.
2. Connect the camera power (12VDC or 24VAC).
Power
Video
BNC
UTP
Green
connector
terminal
Camera base
yellow=positive
gray=negative
