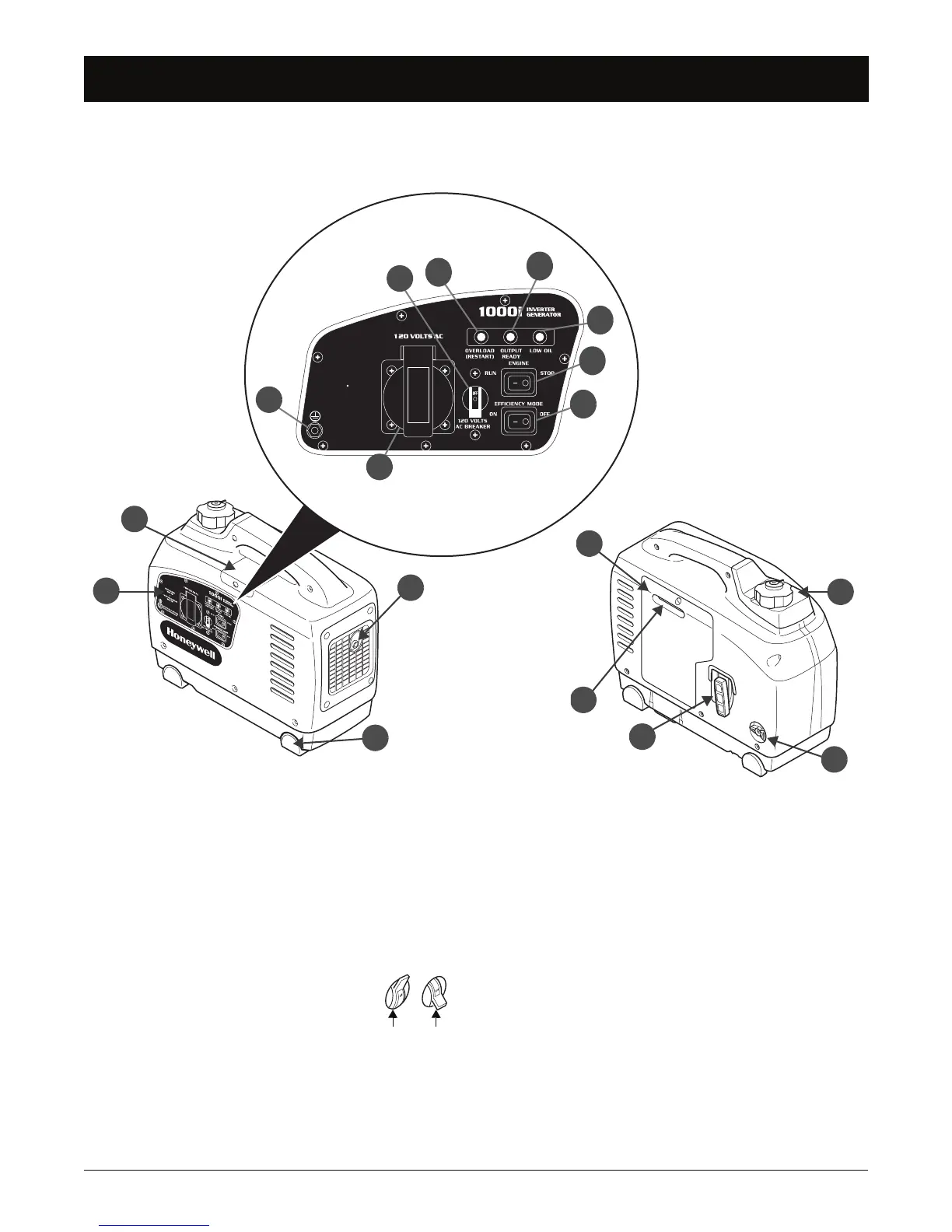

Front and Back View
8 www.honeywellgenerators.com HW1000i / HW2000i Inverter Generator Owner’s Manual
Front and Back View
Front and Back View
HW1000i Model
A—Control Panel
1. Outlets
125VAC outlet(s) (NEMA 5-15R [HW1000i model] and NEMA
5-20R [HW2000i model]) to connect 120V appliances to gen-
erator for power.
2. Ground Terminal
Provides generator connections to a grounding electrode.
See “Grounding the Generator” on page 6.
3.
Breakers
Protects circuits from damage caused by
overload or short-circuit by stopping flow of
electricity from generator to the appliance. If
there is no power at outlets, see “Trouble-
shooting” on page 29.
4.
Overload Indicator Light
Illuminates red when the generator is overloaded. Turn the
generator off immediately and determine the reason for the
overload.
5.
Output Indicator Light
Illuminates green when the generator is running under nor-
mal operating conditions.
6. Oil Alert Indicator Light
Illuminates red when low oil conditions are present and the
generator is running (or while recoil is pulled). The engine
will automatically stop to prevent generator damage.
NEUTRAL FLOATING
NEUTRE FLOTTANT
1000 MAXIMUM
WATTS
900 RATED
WATTS
A
B
C
2
4
7
8
6
1
5
3
D
G
E
F
H
I
Set Tripped
