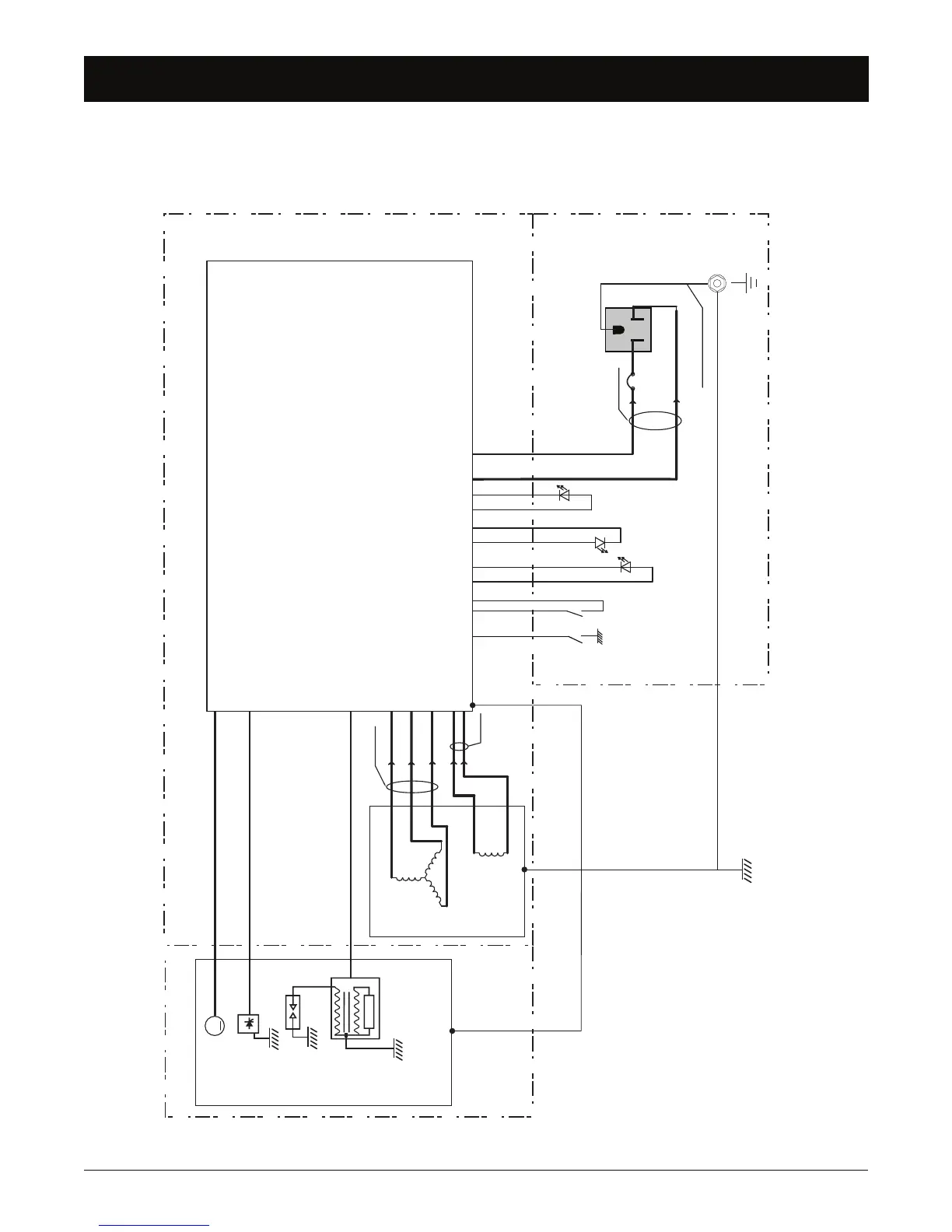

Wiring Diagrams
32 www.honeywellgenerators.com HW1000i / HW2000i Inverter Generator Owner’s Manual
Wiring Diagrams
Wiring Diagrams
HW1000i Model
GENERATOR
CONTROL PANEL
GROUND
TERMINAL
STEEL
BASE
primary
#18 black
white
secondary
oil
alert
indicator
light
overload
indicator
light
output
indicator
light
ENGINE
oil alert
sensor
spark
plug
step motor /
fuel control
ignition
coil
M
run / stop
switch
ALTERNATOR
ENGINE BLOCK
efficiency
mode
switch
#16 black
5-15R
#18 yellow / green
~120V
AC breaker
10A
G
WX
INVERTER
