Assembly
8 www.honeywellgenerators.com HW5600C Portable Electrical Generator Owner’s Manual
Step 2: Install Wheel Axle and Wheels
1. Install wheel axle brackets to frame using 16 mm long
full-thread hex bolts and serrated flange nuts.
1A. Install pre-attached bracket to frame first.
Axle brackets are offset (one side longer than the other),
place with the short side up during installation.
1B. Install other bracket to frame.
On each end of axle:
2. Slide and push wheel onto axle until it fits snug
against washer.
3. Slide a washer onto axle.
4. Slide snap pin into pre-drilled hole until fully seated.
5. Return generator to upright position (so that wheels
and leg supports are touching the ground).
To install wheel assembly, you will need:
Wheel axle (1)
M10 x 16 mm long full-thread hex bolts (4)
M13 serrated flange nuts (4)
Axle bracket
*
(1)
* Two brackets are needed to install wheel axle. One bracket
comes already attached to wheel axle; other bracket is included
in accessory kit box.
Wheels (2)
M16 x 30 mm OD x 2.5 mm washers (2)
Snap pins (2)
10 mm open end wrench
†
Socket wrench with 13 mm socket
†
† Not included.

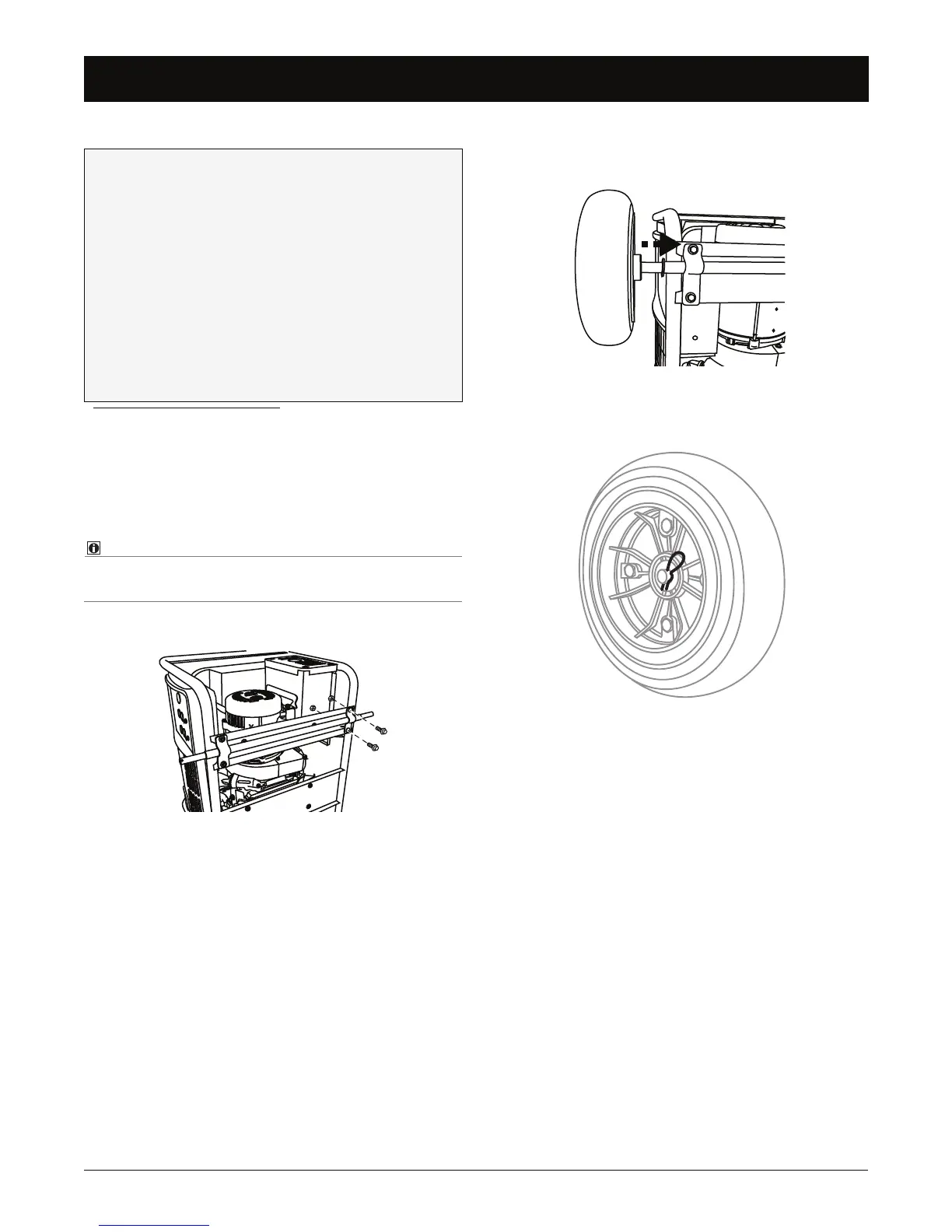

FIGURE 8: Wheel Axle Attached to Generator
FIGURE 9: Slide Wheel onto Wheel Axle
FIGURE 10: Snap Pin Installation
