ECS Series Emergency Communication System Installation Manual 151455
4-32
3. Secure the supplied bracket to the top mounting bracket on the ECS-125WBD with the two mount-
ing screws. See Figure 4-43.

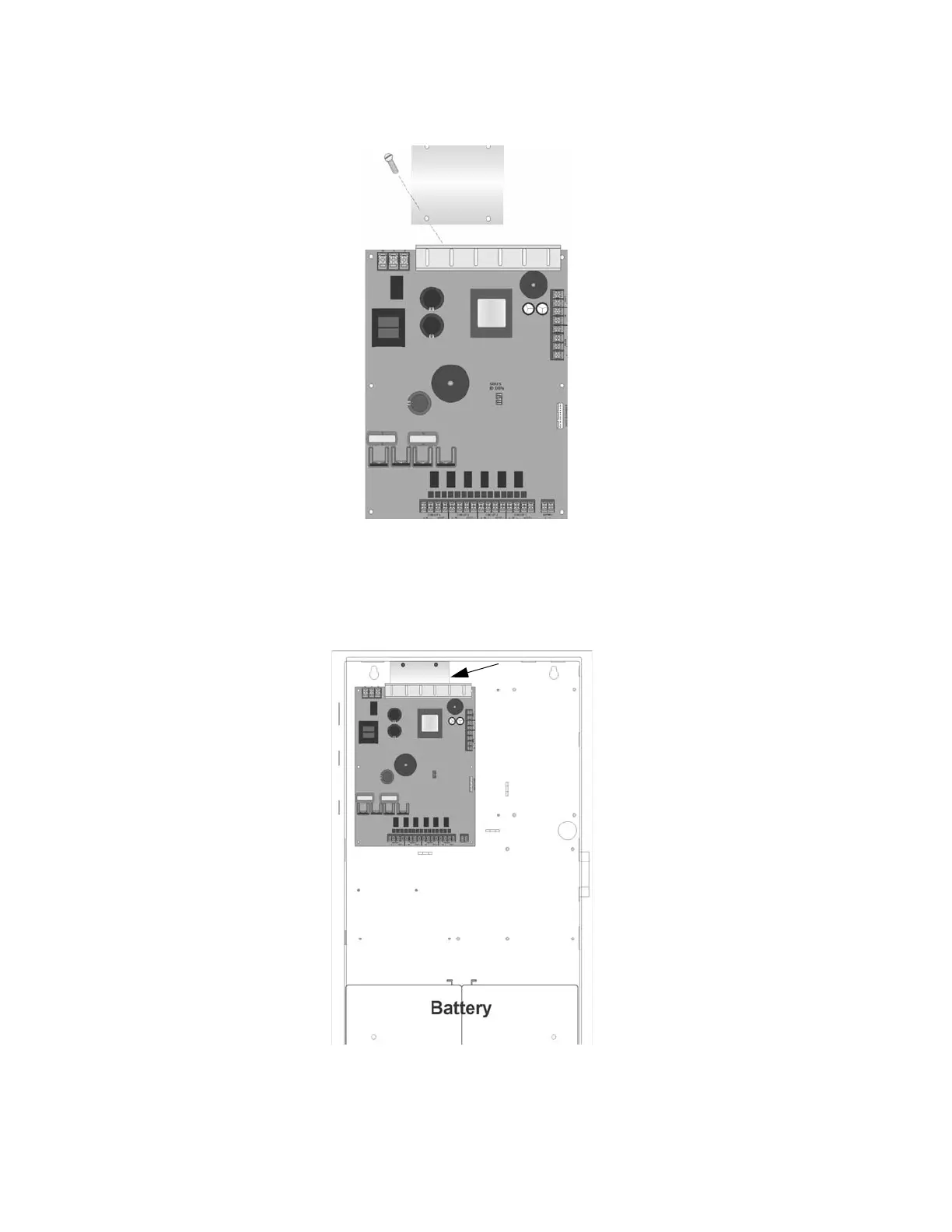

Figure 4-43 : ECS-125WBD Mounting Bracket
4. Align the mounting holes on the bracket with the enclosure.
5. Secure the board to the enclosure.
6. Restore AC power and reconnect the backup batteries.
Figure 4-44 : ECS-125WBD In Enclosure
Mounting
Bracket
