IntuVueRDR-7000 Weather Radar Pilot's Guide
D201911000094 Equipment Description
Rev 0, Feb 2020 43
WEATHER AHEAD INDICATION
Most displays will indicate Weather Ahead by using the TGT
annunciation (usually TGT ). Some may instead provide a text
message (e.g., “WX AHEAD” or “TGT”) below the radar mode
annunciation. Colors and locations may vary.
If this feature is installed, it is always on, sothere is no separate “TGT
armed” annunciation.
PREDICTIVE WINDSHEAR ANNUNCIATIONS
VISUAL/TEXTUAL PWS ALERT ANNUNCIATIONS
Visual/textual Caution and Warning Alerts are annunciated on the
Electronic Displays or via lamps.
Caution Visual Alert: Amber “W/S AHEAD” or similar
Warning Visual Alert: Red “W/S AHEAD” or similar.
PWS ICONS
WINDSHEAR ICONS WITH SEARCH LINES

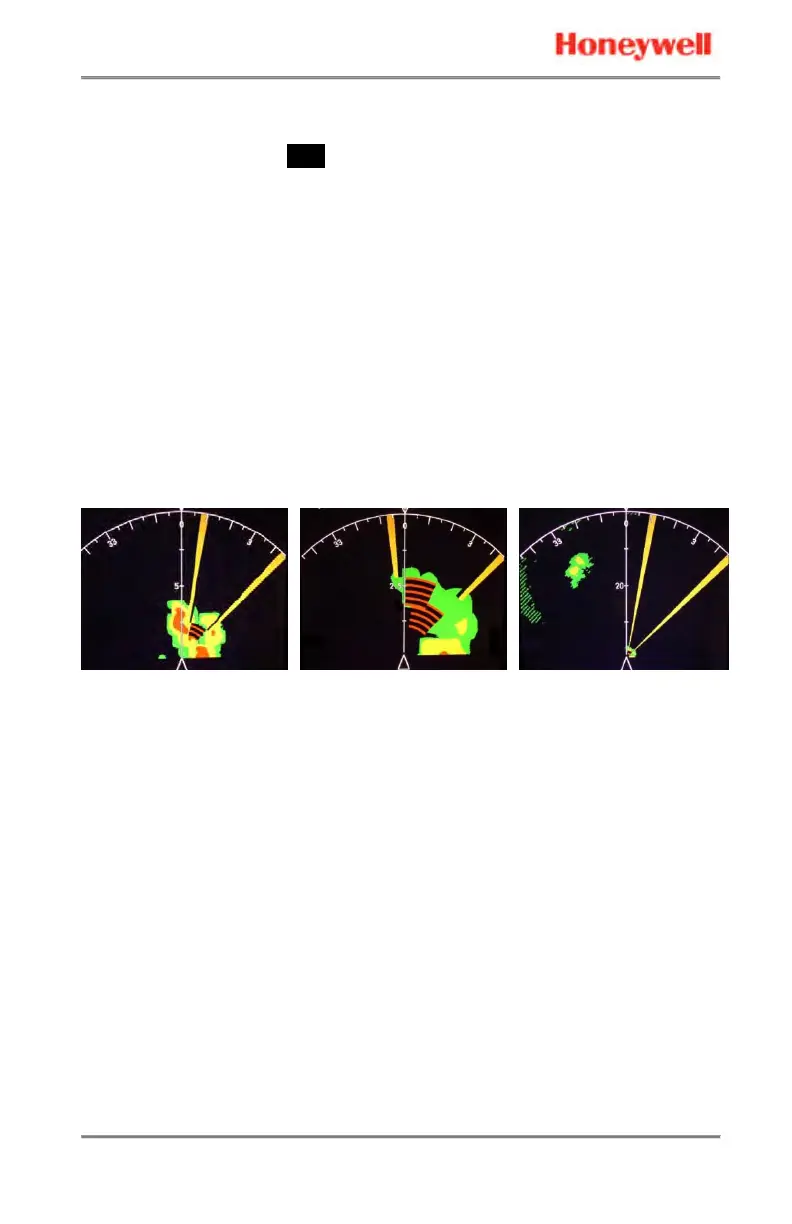

The windshear icon shown on the display represents the location of the
event in both range and azimuth. In the left example, the windshear event
begins about 2 nm ahead and 25° to the right of the aircraft. The center
example shows two icons, indicating two windshear events. The yellow
and black search lines help locate the icon in case a long range is selected.
