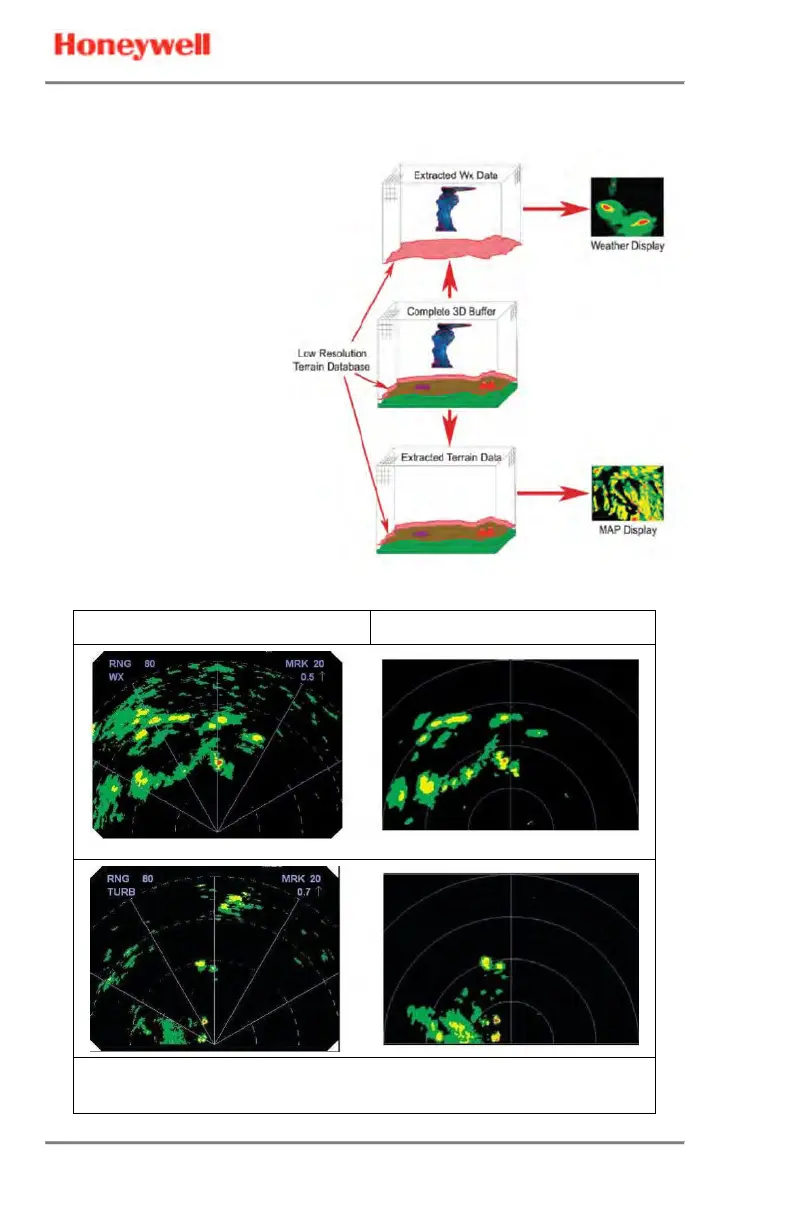

GROUND CLUTTER EXTRACTION
The radar processor
contains an internal
terrain database with
elevation data. The
radar compares the
collected reflectivity
data with the terrain
database. Reflectivity
data that correlates to
terrain data is
considered ground-
clutter, and is
suppressed from the
weather images.
However, the data that
is suppressed from the
weather images is
retained for display
when the radar’s GMAP
Mode is selected.
CONVENTIONAL RADAR RDR-7000
IMPROVED CLUTTER REJECTION/ENHANCED WEATHER PRESENTATION
(ALBUQUERQUE ~70 NM, RIGHT OF TRACK)
