IntuVueRDR-7000 Weather Radar Pilot's Guide
RDR-7000 Technical Operation D201911000094
62 Rev 0, Feb 2020

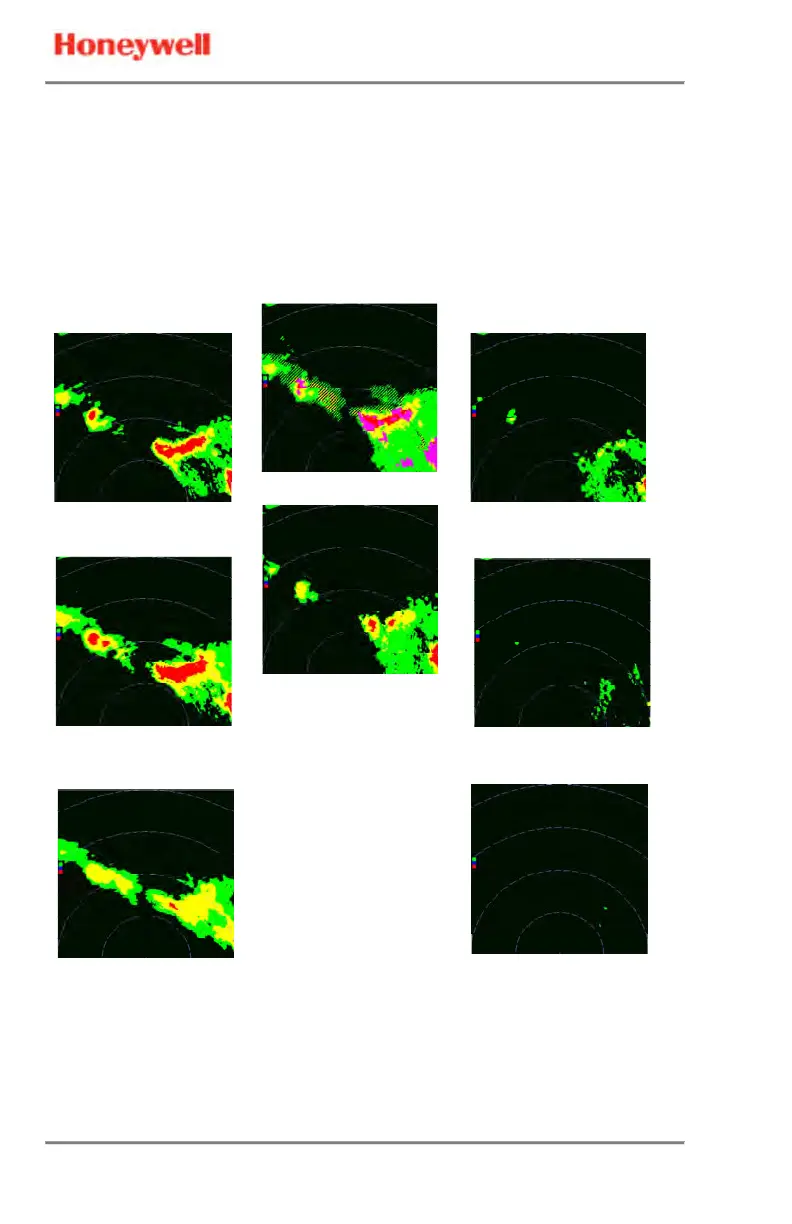

The example below demonstrates the WX MAN mode. In the top
center picture, the system is in the WX ALL mode at an aircraft
altitude of 20,000 feet MSL. In the second center picture, WX
MANmode has been selected.This is an elevation slice at the current
aircraft altitude (20,000 feet MSL). The remaining pictures show the
returns at different elevations. Observe that the cell tops exceed
25,000îfeet.
MANUAL ALTITUDE MODE EXAMPLE
USING VARYING ELEVATIONS
WX ALL MODE
MANUALMODE:
SLICE AT 20,000FT
(e.g. AT A/C ALTITUDE)
MANUAL MODE:
SLICE AT 15,000 FT
MANUAL MODE:
SLICE AT 10,000 FT
MANUALMODE:
SLICE AT 5,000 FT
MANUALMODE:SLICE
AT 45,000 FT
MANUALMODE:
SLICE AT 25,000 FT
MANUALMODE:SLICE
AT 30,000 FT
