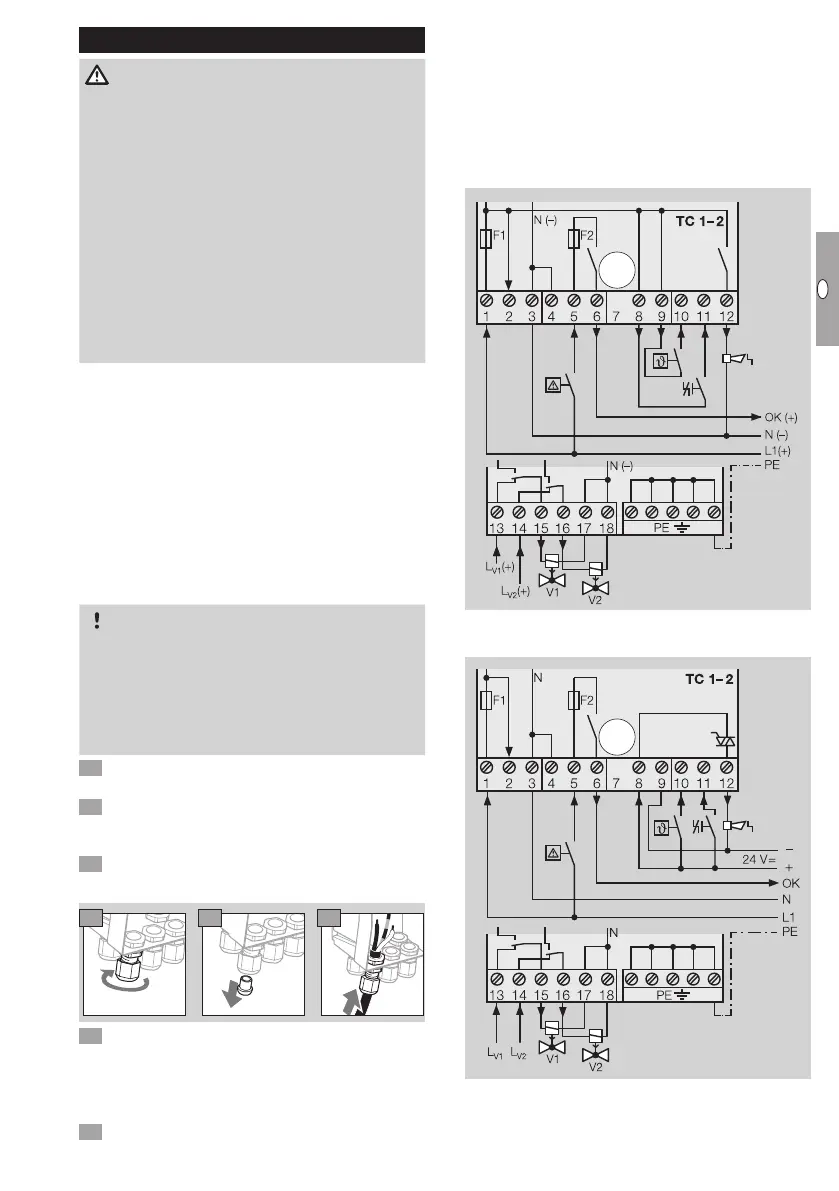

Wiring
WARNING
Electric shocks can be fatal!
Before working on possible live components,
ensure the unit is disconnected from the power
supply.
Incorrect wiring may result in unsafe states and
the destruction of the tightness control, the au-
tomatic burner control unit or the valves.
Do not reverse L1 (+) and N (–).
Cable cross-sections must be designed for the
current rating of the selected external fuse.
The valve outputs on the automatic burner con-
trol unit connected to the TC must be safe-
guarded by an external slow-acting fuse of max.
5 A (e.g. in the automatic burner control unit).
Wiring to EN60204-1.
Use connection terminals with a cable cross-
section of max. 2.5mm
2
.
Conductors which have not been connected
(spare conductors) must be insulated at their
ends.
Do not set the remote reset so that it operates
(automatically) in cycles.
The data on the type label must comply with the
mains voltage.
Length of the connection cable, see page 10
(Technical data).
CAUTION
Please observe the following to ensure that the unit
is not damaged during operation:
Avoid voltage and current peaks! It is recommen-
ded to equip connected valves with a protective
circuit in accordance with the manufacturer’s
instructions.
Disconnect the system from the electrical power
supply.
Shut off the gas supply.
Before opening the unit, the fitter should ground
himself.
Open the housing cover of the TC.
Preparing the wiring
max. 3,5 Nm
24
7
3
5
6
7 Secure used cable glands. Tightening torque:
max. 3.5 Nm.
Unused cable glands are to remain closed with
a plug. Otherwise, dirt or moisture can penetrate
the housing.
8 Wire as shown on the connection diagram.
For PE wire connection, 5 PE terminals are avail-
able for forwarding. They are designed as dis-
tributor terminals, e.g. to connect the PE wires
of the valves to the system PE (connection to the
system PE must be carried out/wired by the user).
Connection diagram for TC, TC
Mains voltage and control voltage:
24VDC/120VAC/230VAC
Mains voltage: 120VAC/230VAC,
control voltage: 24VDC
