Installing/Configuring Communication & Home Automation Modules
Installing the ILP5 Ethernet Communications Module
!
Do not install the ILP5 if the L5100
-WiFi communications module is being installed.
Ensure that the connector board and cable are securely installed in the ILP5 before installing the
communications module in the LYNX Touch.
1. Using a wire cutter or knife cut the plastic tabs that secure the ILP5 spacer to the back case of the LYNX Touch.
2. Remove the ILP5 receptacle knockout from the left side of the LYNX Touch back case.
3. Install the ILP5 into the LYNX Touch control front case. Ensure that the connector board is properly seated into the
receptacle on the control.
4. Secure the ILP5 with the three provided screws.
5. Insert the ILP5 receptacle and spacer into the slot on the back case.
6. Secure the communications cable to the tie wrap point on the ILP5 with the provided tie wrap.
7. Connect the Ethernet cable to the RJ45 receptacle.
8. After closing the panel, enable the ILP5 and configure alarm reporting and module supervision and register the device.
Refer to the “Program the Communications Module” and “Communications Diagnostics” sections.
Alternate Installation (Refer to the Alternate Installation as shown on the figure below)
1. Install the ILP5 into the LYNX Touch control front case. Ensure that the connector board is properly seated into the
receptacle on the control.
2. Secure the ILP5 with the three provided screws.
3. Insert the ILP5 receptacle into the slot on the back case as shown on the figure below.
4. Secure the communications cable to the tie wrap point on the ILP5 with the provided tie wrap.
5. Connect the Ethernet cable to the RJ45 receptacle.
6. After closing the panel, enable the ILP5 and configure alarm reporting and module supervision and register the device.
Refer to the “Program the Communications Module” and “Communications “Diagnostics” sections.
The communications module must be registered with AlarmNet before downloading or alarm reporting can
take place.
5201-100-012-V1
LYNX TOUCH
ALTERNATE INSTALLATION
RJ45 RECEPTACLE
ETHERNET CABLE
TO ILP5
REMOVE
ILP5
SPACER
REMOVE
ILP5
KNOCKOUT
ROTATED
180
CONNECTOR
BOARD
CONNECTOR BOARD
RECEPTACLE
LYNX TOUCH
L5210
TIE
WRAP
POINT
ILP5
SPACER
TIE
WRAP
(1)
RJ45
RECEPTACLE
SCREW
(3)
ILP5

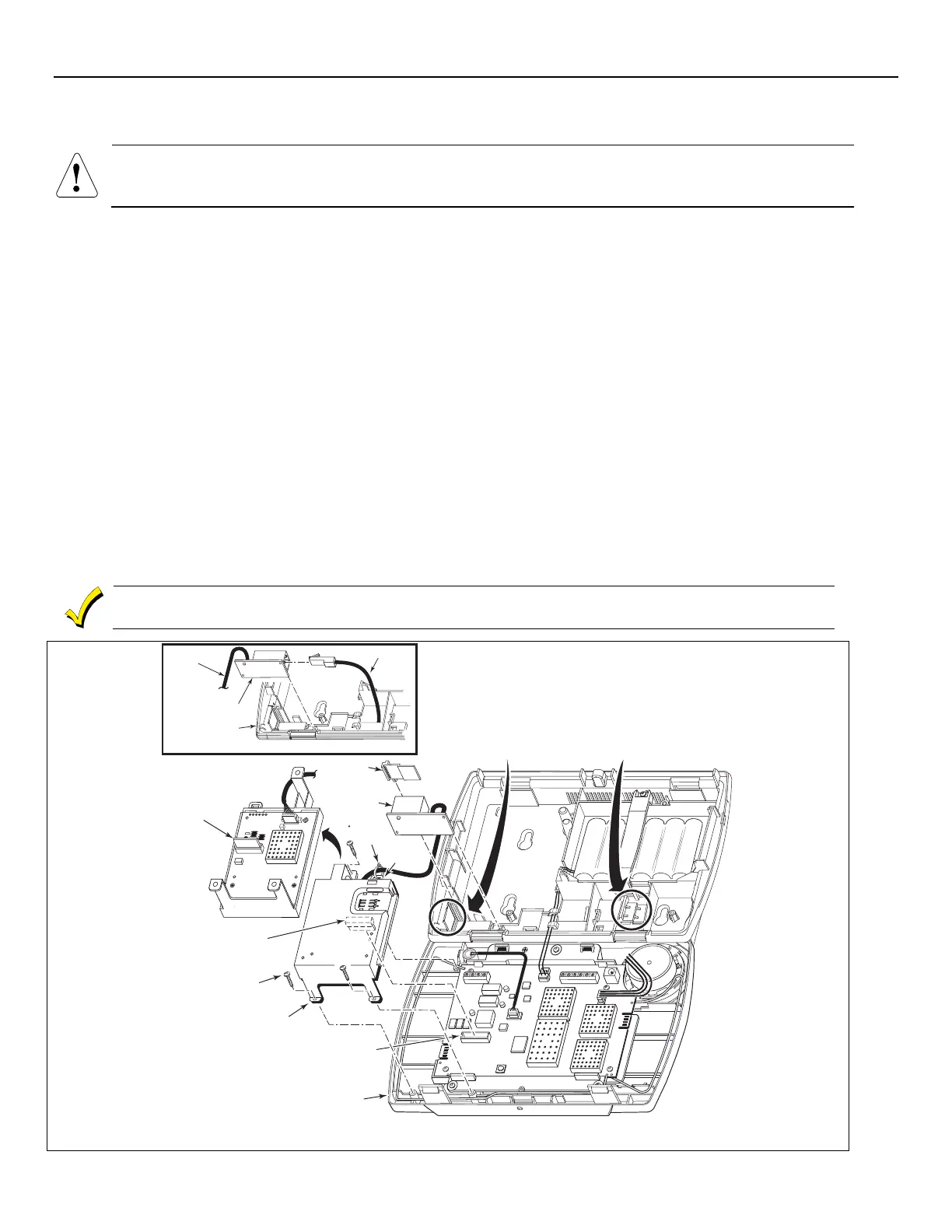

L5210 IP Communications Module Installation
