Honeywell L5210 Series User Manual

LYNX Touch Installation and Setup Guide
- 8 -
Installing the Control
5201-100-003-V0
L5210 Desk Mount
7000-100-017-V0
L7000 Desk Mount

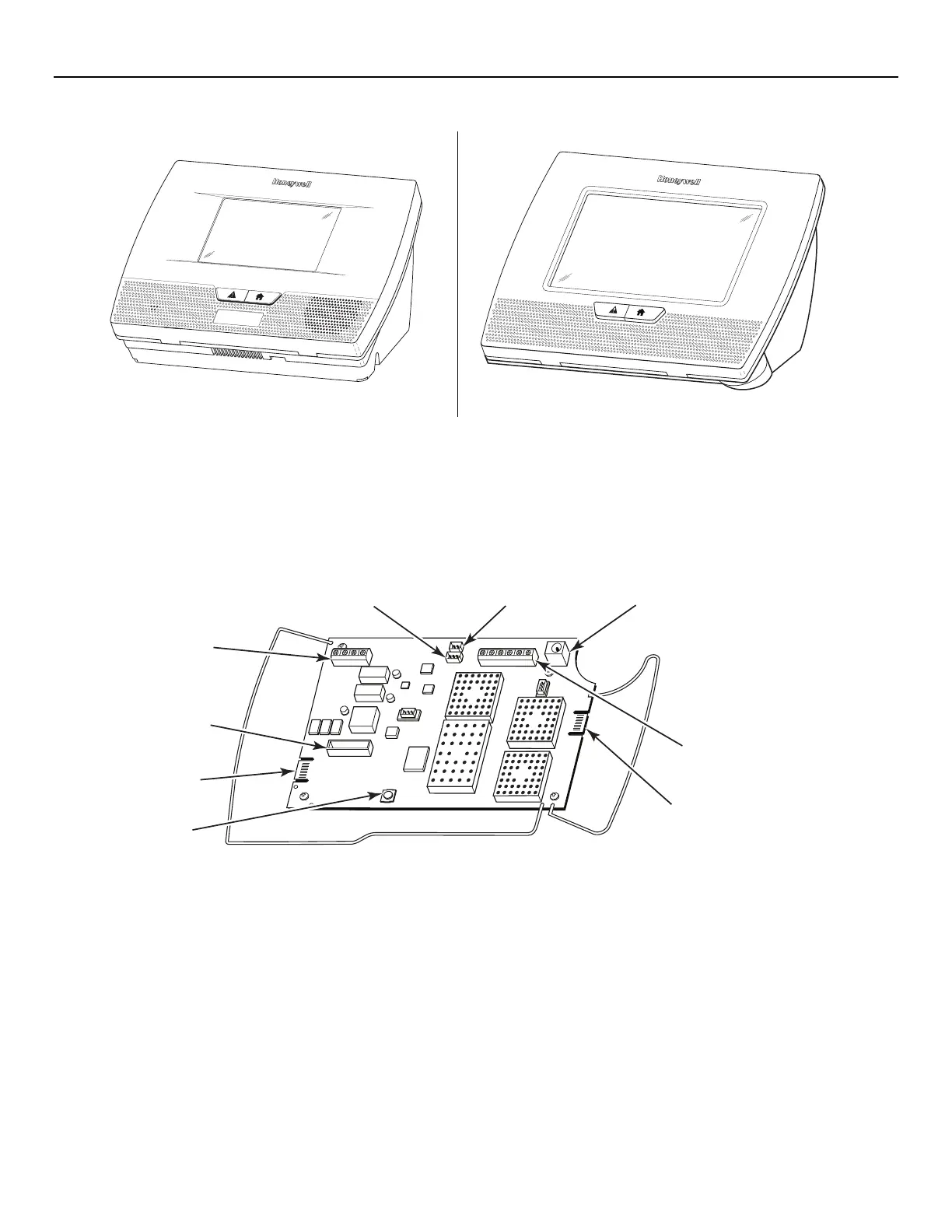

Wiring Overview
The following summarizes the electrical connections associated with the L5210/L5210CN and
L7000/L7000CN. Refer to the Wiring Connections paragraph and the Summary of Connections diagram on
the inside back cover when making connections.
5201-100-006-V1
TERMINAL
STRIP
TELEPHONE
CONNECTIONS
(L5210 ONLY)
POWER SUPPLY
RECEPTACLE
EDGE
CONNECTOR
TAMPER
SWITCH
EDGE
CONNECTOR
STANDARD
CAPACITY BATTERY
CONNECTION
SUPER HIGH
CAPACITY BATTERY
CONNECTION
COMMUNICATION
MODULE
RECEPTACLE
