Identify the Parts of the Printer

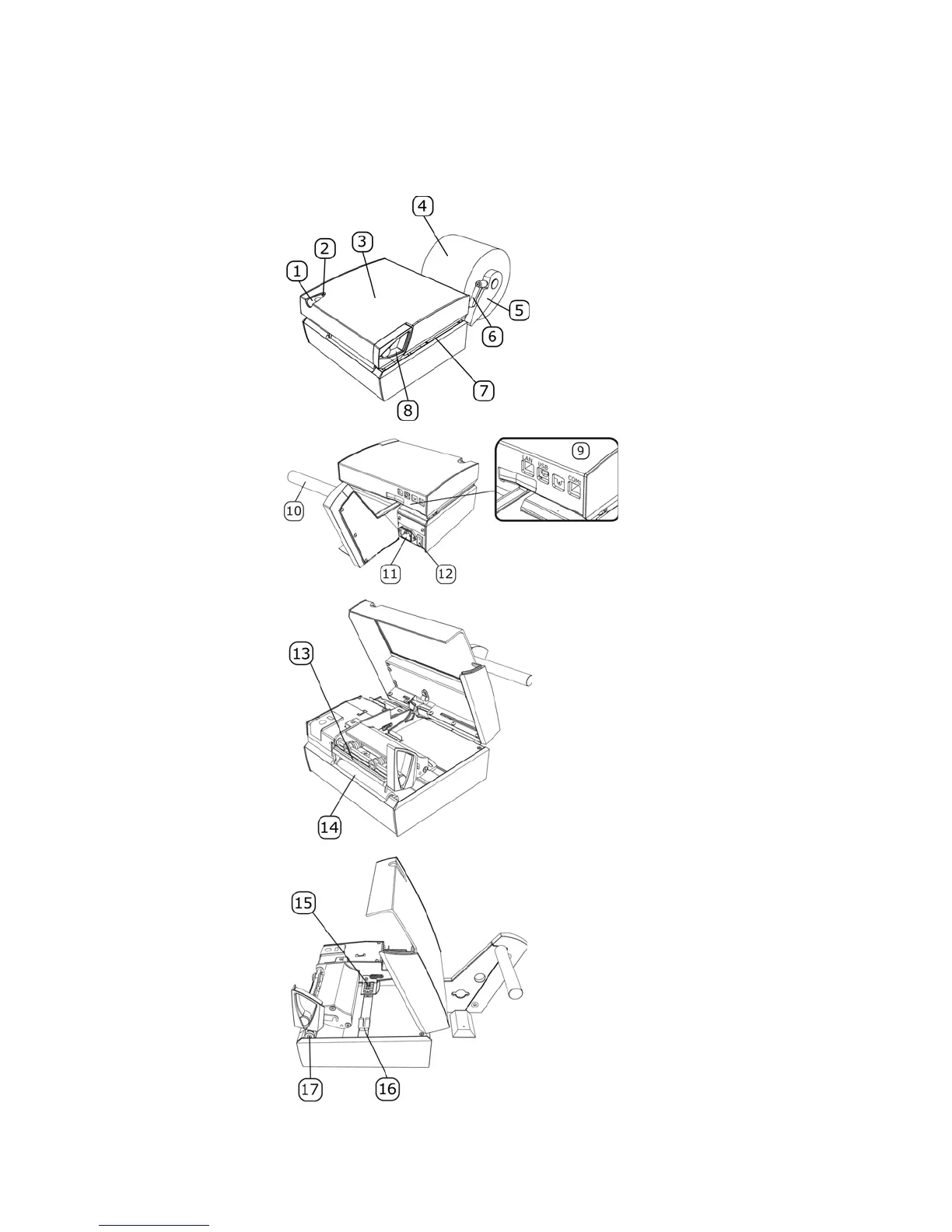

MP Nova4 & 6 DT – Printer Parts
m p
1 Print button
2 Status lamp (LED)
3 Cover
4 Media roll
5 Roll steering
6 Roll-guide lock
7 Media track
8 Handle
9 Communication ports
10 Unroll shaft
11 Power connection
12 Power switch
13 Printhead
14 Print roll
15 Media Positioning Sensor
(MPS)
16 Paper guide
17 Outer plate holder
