14
Mounting and Installing Options
The MPA1C1 controller (MPA1C1) has been designed to fit in a
single gang US electrical gang box.
To mount the MPA1C1:
• Fully wire the MPA1C1. Ensure all the cables have proper
strain relief, and use the provided zip tie for additional CAT5
Cable strain relief.
• Push the MPA1C1 into the junction box with LEDs visible.

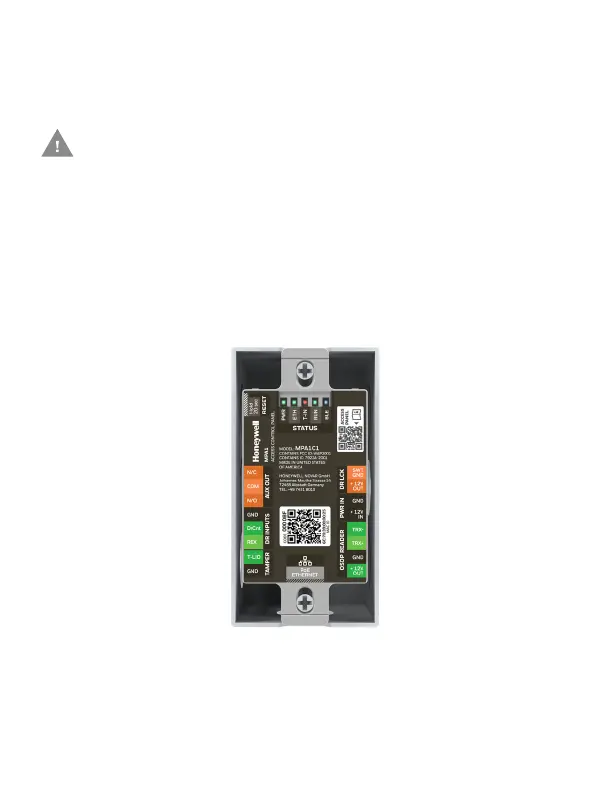

MPA1C1 in a single gang US electrical gang box
• Place the light blocking label on the back of the single gang cover
plate.
• Attach any provided cover plate.
For compliance with UL294 and CAN/ULC60839-
11-1, the MPA1C1 is intended to be installed within
the secure/protected area.
