Honeywell MPA1C1 - Ethernet Virtual Loop (EVL) with Common IP Subnet

35

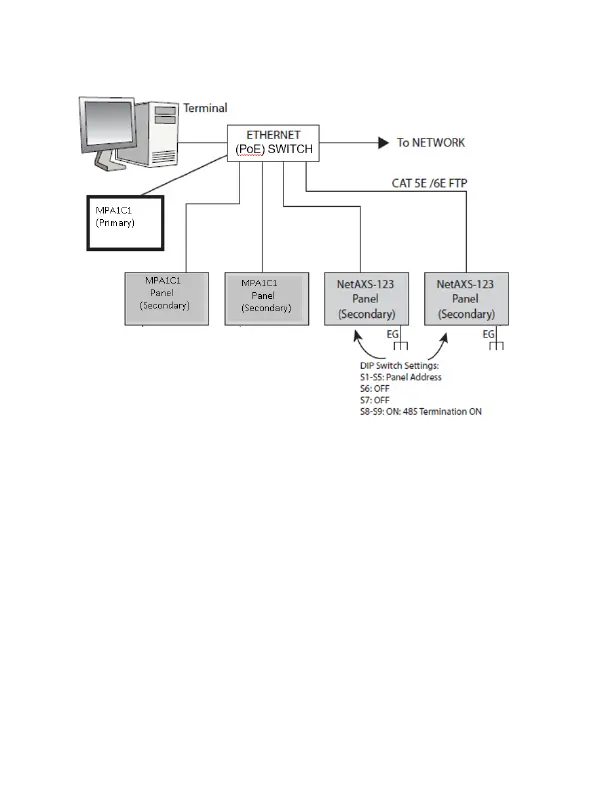

Ethernet Virtual Loop (EVL) with all panels on common IP
Subnet
Note:
• The Network must provide DHCP server (or use dedicated
Network configuration with a router, as shown in next section).
• The Network must provide firewall protection from
unauthorized access.
• EVL is not evaluated by UL294 and CAN/ULC60839-11-1.
MPA1C
1(Pri-
mary)
MPA1C1
Primary
