31

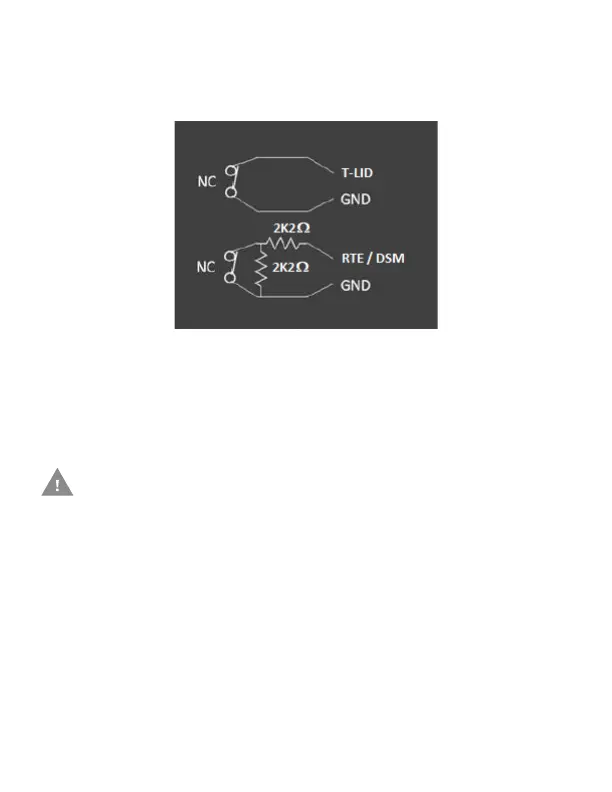

The following figure shows the typical wiring for supervised and
non-supervised inputs.
Supervised and non-supervised input wiring
For Supervised inputs standard 2.2K ohm resistors will be used.
The MPA1C1 panel accepts only 2.2K ohm values.
The wire used for the inputs cannot exceed 30 ohms over the
entire length of the cable.
Remember that the distance from the panel to the door must be
doubled to determine the total resistance.
The system has not been verified for compliance with
UL1076 Burglar Alarm units and systems.
