Wiring a Magnetic Lock
Use the following instructions to wire a heavy duty magnetic
lock to the Controller Board:
• Use the following figure to locate the AUX OUTPUT voltage free
terminals on the controller and to wire the magnetic lock according to
the powersupply used. The contacts can switch up to 2A.
• Be sure to use the S4 suppressor kits as shown below.
• The 12VDC must be taken from the external Power supply as shown
below.
• If needed the AUX OUT door operation can be set in the web user
interface and host software as Fail safe and Fail secure.
• If the door operation is set as Fail Secure a door strike that locks
without power can be connected.
• If the door operation is set as Fail Safe a magnetic lock that releases
without power can be connected.

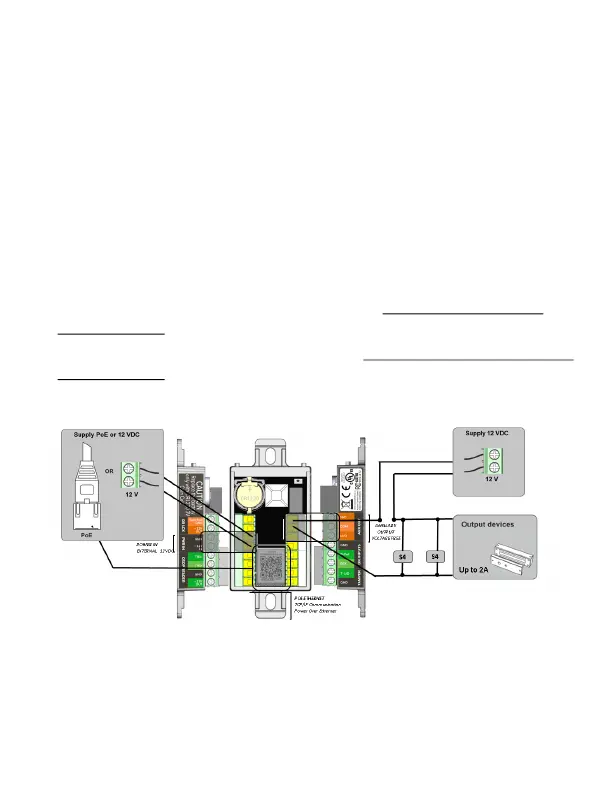

Wiring an Access Control Magnetic Lock
Note: S4 Suppressor kits are not evaluated by UL294 and CAN/
ULC60839-11-1
