Honeywell MPA1C1 - Supervised and Non-Supervised Input Wiring

30

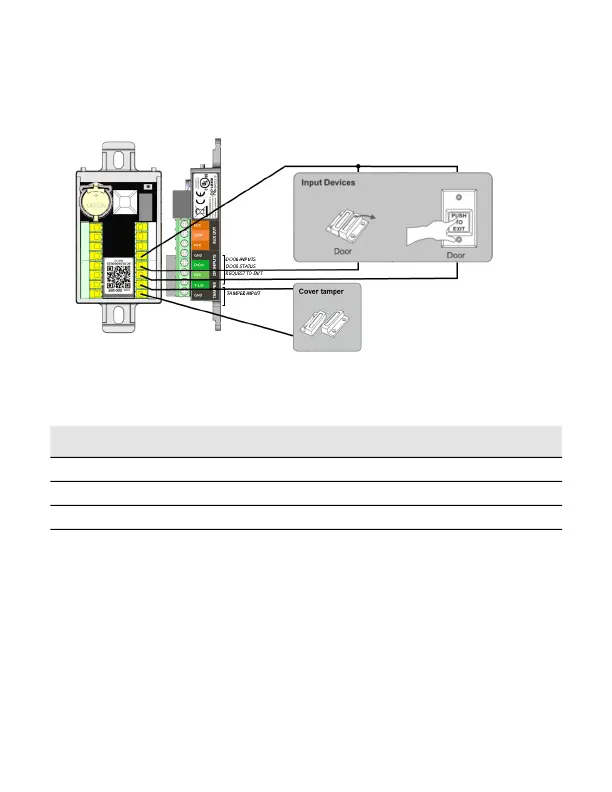

Supervised and non-supervised input wiring
The supervised inputs are located on the following terminal
blocks:
Non-supervised input Terminal Blocks
Door Status (DrCnt) and Request to Exit (REX) may be config-
ured as Normally Open or Normally Closed contacts and as
supervised or non-supervised.
All inputs on the Controller Board and the additional inputs
have default functions, but they can be configured for general
purpose inputs.
Default Board Configuration Terminal Block
DrCnt (Door Contact) N/C DR INPUTS (GND, DrCnt)
REX (Request To Exit) N/C DR INPUTS (GND, REX)
T-LID (Cover Tamper) N/C TAMPER (GND, T-LID)
