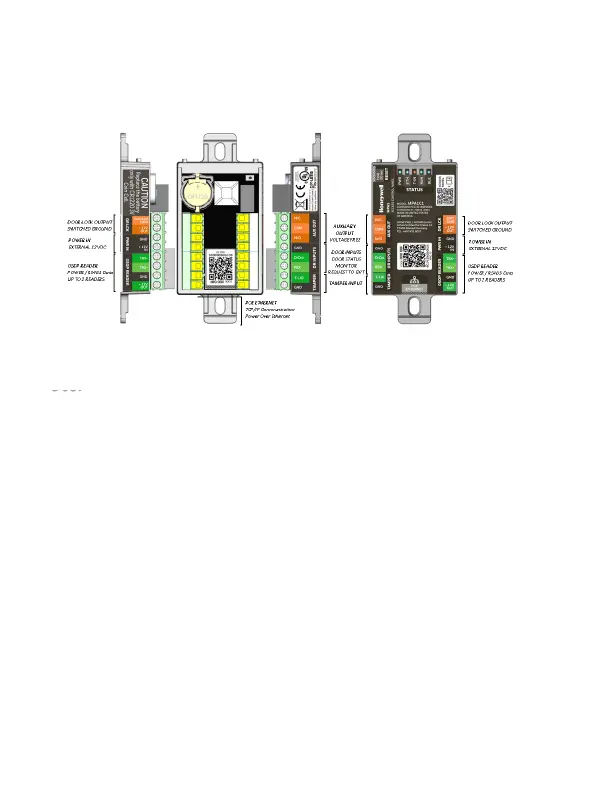

MPA1C1 Compact Enclosure wiring connections
Note:
• Install according to ANSI/NFPA70 National Electrical Code and local
codes.
• All wiring except for the CAT5 Cable shall be shielded wire.
• Terminal blocks are rated for 12-26 AWG wiring.
• UL Listed and suitably rated ferrule connectors have to be used in
case of braid copper wires or in case of two wires connected to one
screw terminal. The cross section of the ferrule connectors and the
wire gauges have to match.
• To fix the ferrule connectors please use a proper crimping tool.
• Canadian Electrical Code, part 1. Local Authority Having Jurisdiction.
