Maintenance
Horizontal Scan Window Replacement
Note: After the replacement platter has been installed, remove all protective film from the new platter’s
window. The unit will not function properly if the protective film is not removed.

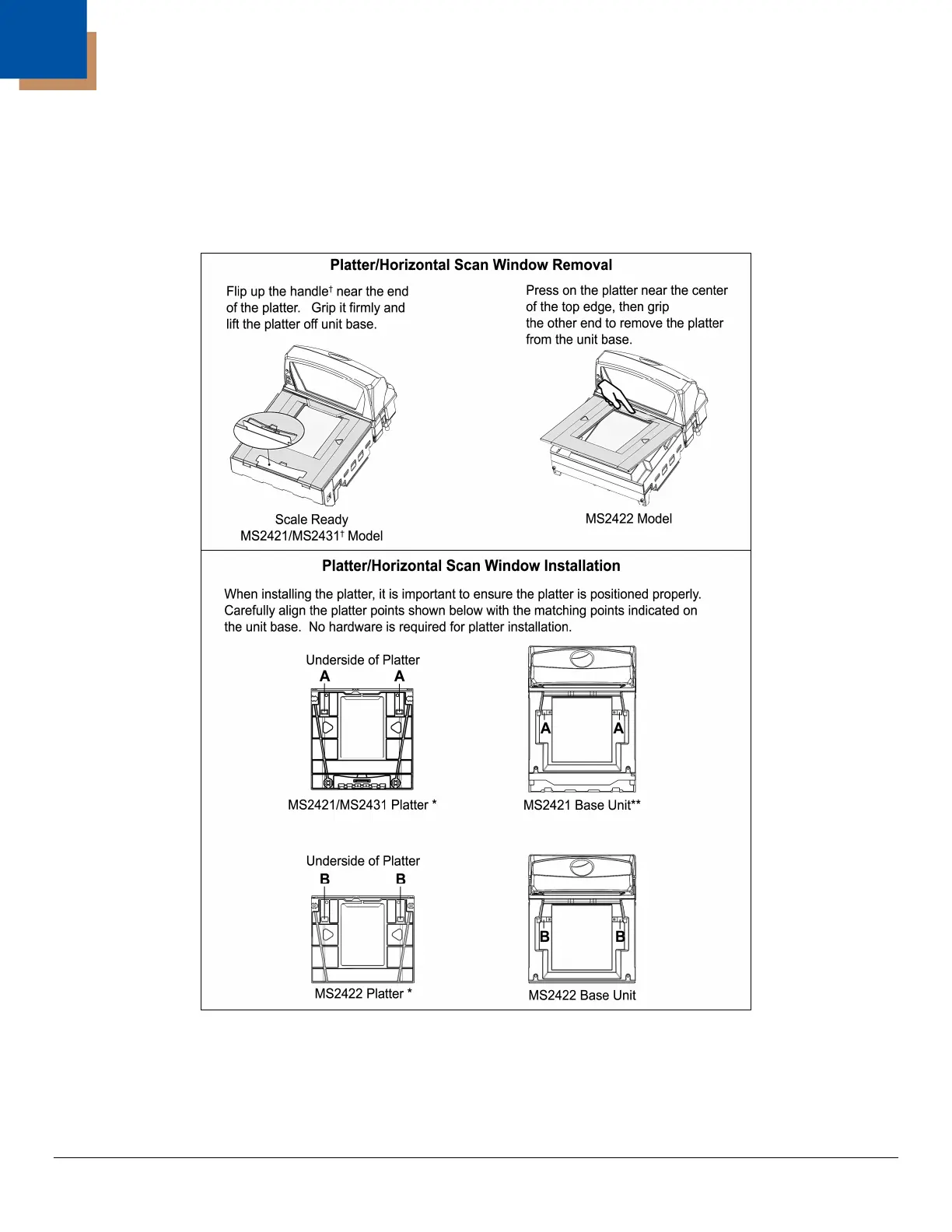

Figure 38. Platter/Horizontal Scan Window Replacement
* See replacement parts on page 3.
** For MS2431, use the same points as shown for the MS2421 to install the platter.
†
If the platter on the MS2421/MS2431 is not equipped with a product weight roll bar / lift handle, it can be
removed using the same method as shown for the MS2422.
