MDE-4636C Honeywell® MS3780 Fusion Scanner Setup/Service Instructions · July 2021 Page 3

Introduction

Figure 2: Passport

™

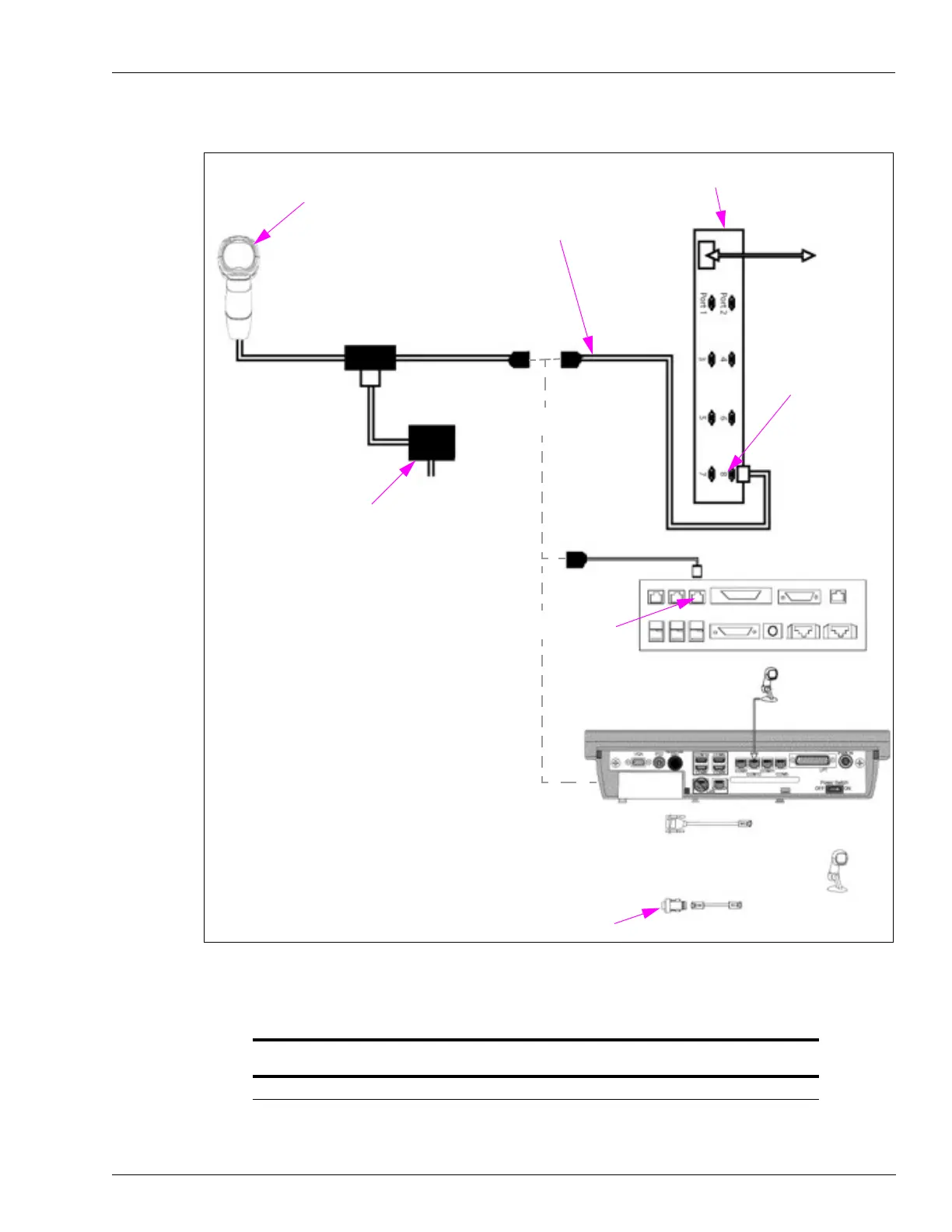

System Connections Diagram

Hand-held Scanner

(Q12651-21)

Power Supply (Q12651-20)

Q13240-11B (from Passport

Workstation Installation Kit)

To Se rv er

or Client

(PX5X)

Ports on Rear of PC41/PC42

Port C

~ OR ~

Port 8

USB/RS-232

Converter (PX5X)

~ OR ~

Ports on Rear of PX60

M09747B010A

Q13850-06

Q13180-35B

Scanner

COM 12 Scanner

Other manuals for Honeywell MS3780 Fusion

Questions and Answers:

Need help?

Do you have a question about the Honeywell MS3780 Fusion and is the answer not in the manual?

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
