MDE-4636C Honeywell® MS3780 Fusion Scanner Setup/Service Instructions · July 2021 Page 9
Fusion Scanner
Fusion Scanner
The Honeywell MS3780 Fusion Scanner is a hand-held, omnidirectional barcode scanner with 
single-line scanning capabilities.
The omnidirection mode is useful for general barcode
reading. The single-line scanning mode is useful when scanning menus (sheets with multiple
barcodes) or programming the scanner. To switch between modes, refer to “Changing Scan
Pattern Modes” on page 10.
Scanner Components

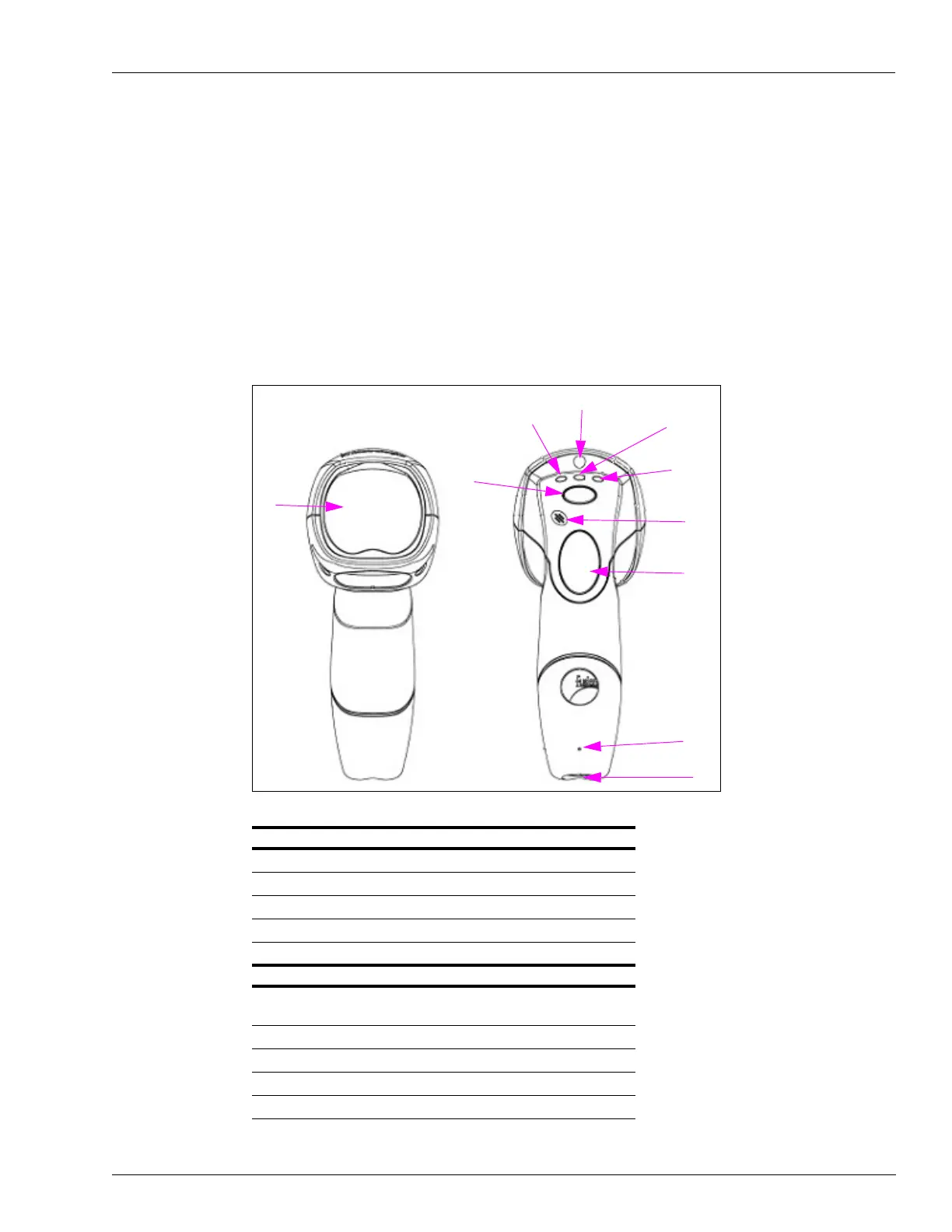

Figure 3: Scanner Components
1
2
3
4
5
6
7
8
9
10
Item # Description
1 Red Output Window, Laser Aperture
2 Mode Select Button (see page 10)
3 Beeper (see page 11)
4 Blue LED, Single-line Mode/Menu Reading (see page 12)
5 White LED (see page 12)
Item # Description
6 Blue LED
All Scan Lines on/Omnidirectional Reading (see page 12)
7 Amber LED, CodeGate
®
(see page 12)
8 CodeGate Button
9 Pin Hole for Cable Release
10 10-pin RJ-45, Female Socket

Honeywell MS3780 Fusion Specifications

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	195 g
