Scan Pattern Mode Select Button
There are two configurable scan pattern modes available with the fusion scanner:
• The primary scan pattern mode is the default scan pattern that is active whe
n the scanner
starts. By default, the primary scan pattern is set to all-scan-lines for omnidirectional
reading.
• The secondary s
can pattern mode is activated by pressing the scan pattern mode button
(see Figure 4). By default, the secondary scan pa
ttern is set to single-line mode for menu
reading.
Note: For information on changing the default scan pattern settings, r
efer to the MetroSelect
®
Configuration Guide.
Changing Scan Pattern Modes
To change scan pattern modes, proceed as follows:
1 Press and release the mode select button, to activate the secondary scan pattern.

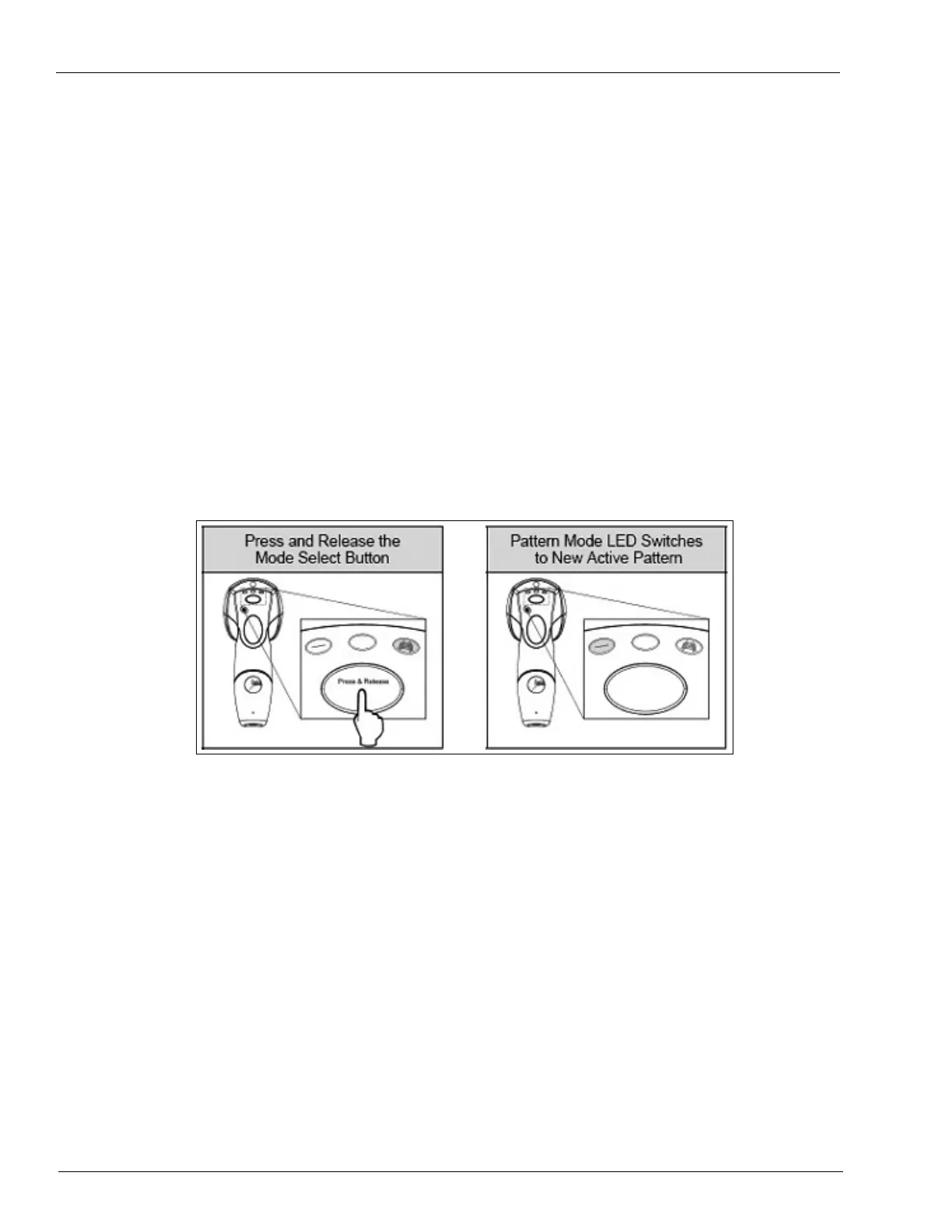

Figure 4: Changing Scan Pattern Modes
Note: Activating a pattern mode when the scanner is out of its stand does not change the 
in-stand pattern mode. When the scanner is returned to the stand, it will automatically
revert to the most recent scan pattern selected during an in-stand operation.
2 Press and release the mode select button again, to reactivate the primary scan pattern.

Honeywell MS3780 Fusion Specifications

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	195 g
