Honeywell MS3780 Fusion User Manual

35
SCANNER AND CABLE TERMINATIONS

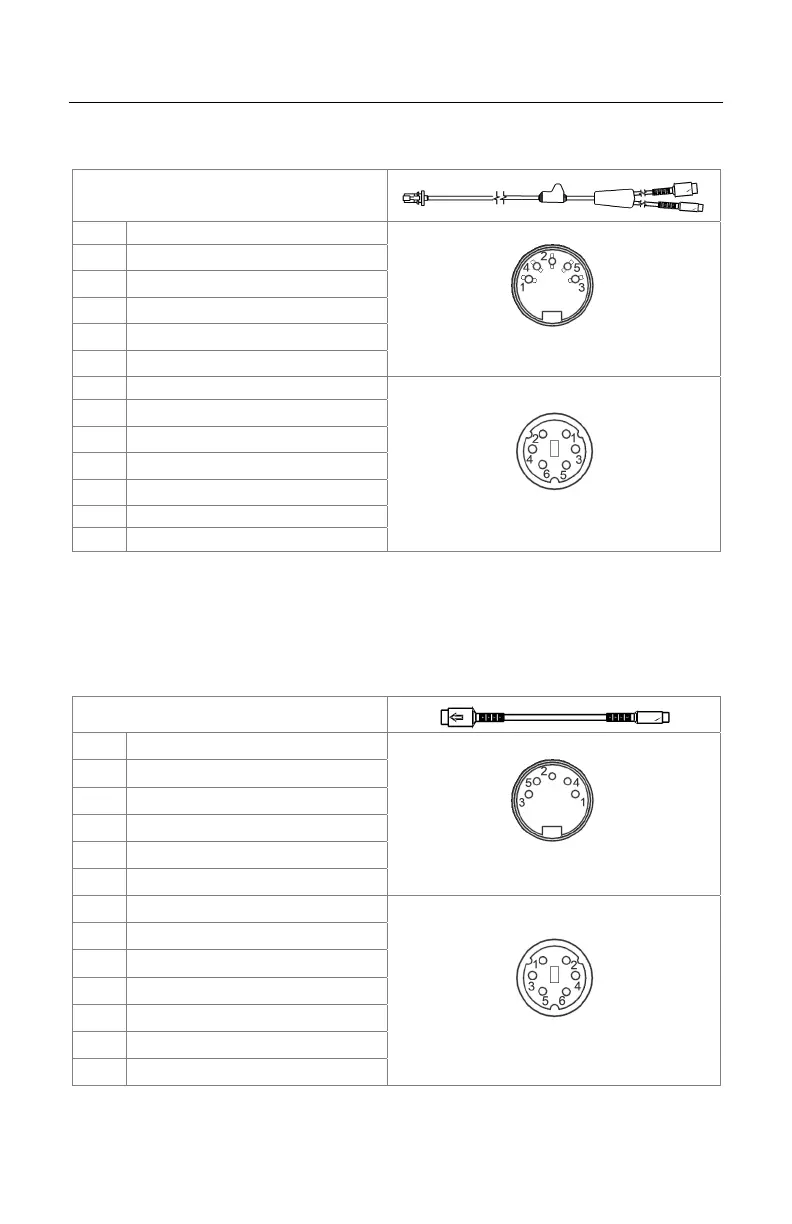

Cable Connector Configurations (Host End)
Keyboard Wedge PowerLink Cable
53-53002x-3
Pin Function
5-Pin DIN, Female
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 Volts DC
Pin Function
6-Pin DIN, Male
1 PC Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 PC Clock
6 No Connect
Honeywell will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to
the keyboard and the keyboard port on the PC.
Keyboard Wedge Adapter Cable
Pin Function
5-Pin DIN, Male
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5 +5 Volts DC
Pin Function
6-pin Mini DIN, Female
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 Keyboard Clock
6 No Connect

Honeywell MS3780 Fusion Specifications

General

Scan speed	1333 sec/page
Wavelength	650 nm
Decoding standards	1D, GS1
Dimensions (WxDxH)	189 x 65 x 73 mm
Standard interfaces	Keyboard wedge
Input voltage	5 V
Certification	FCC Part 15, ICES-003, EN55022 Class B
Product color	Black
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	195 g
