34

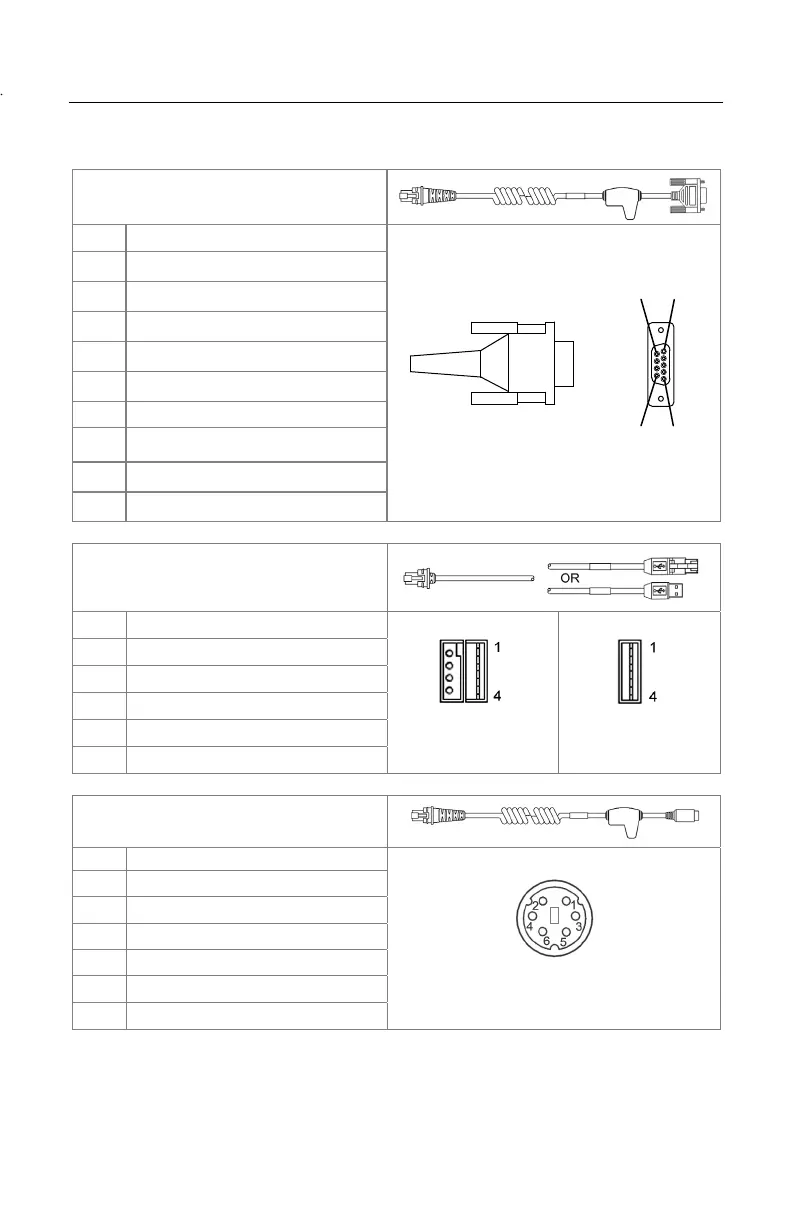

SCANNER AND CABLE TERMINATIONS
Cable Connector Configurations (Host End)
RS232 PowerLink Cable
53-53000x-3
Pin Function
1 Shield Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 DTR Input/Light Pen Source
5 Power/Signal Ground
6 Light Pen Data
7
CTS Input
8 RTS Output
9 +5VDC
USB Power/Communication Cable
53-53213x-N-3, 53-530214x-N-3 or
53-53235x-N-3
Pin Function
1 PC +5V/V_USB
2 D-
3 D+
4 Ground
Shield Shield
Stand Alone Keyboard PowerLink
Cable 53-53020x-3
Pin Function
6-Pin Male Mini-DIN Connector
1 PC Data
2 No Connect
3 Power Ground
4 +5VDC PC Power to KB
5 PC Clock
6 No Connect
9
-Pin D-T
ype
Co
nn
ector
95
61
USB Type A
Locking with Power
USB
Non-Locking
