SCS Series Manual — P/N 15712:L 7/18/16 121
Dedicated Smoke Control System Wiring Diagrams Ratings and Wiring Diagrams

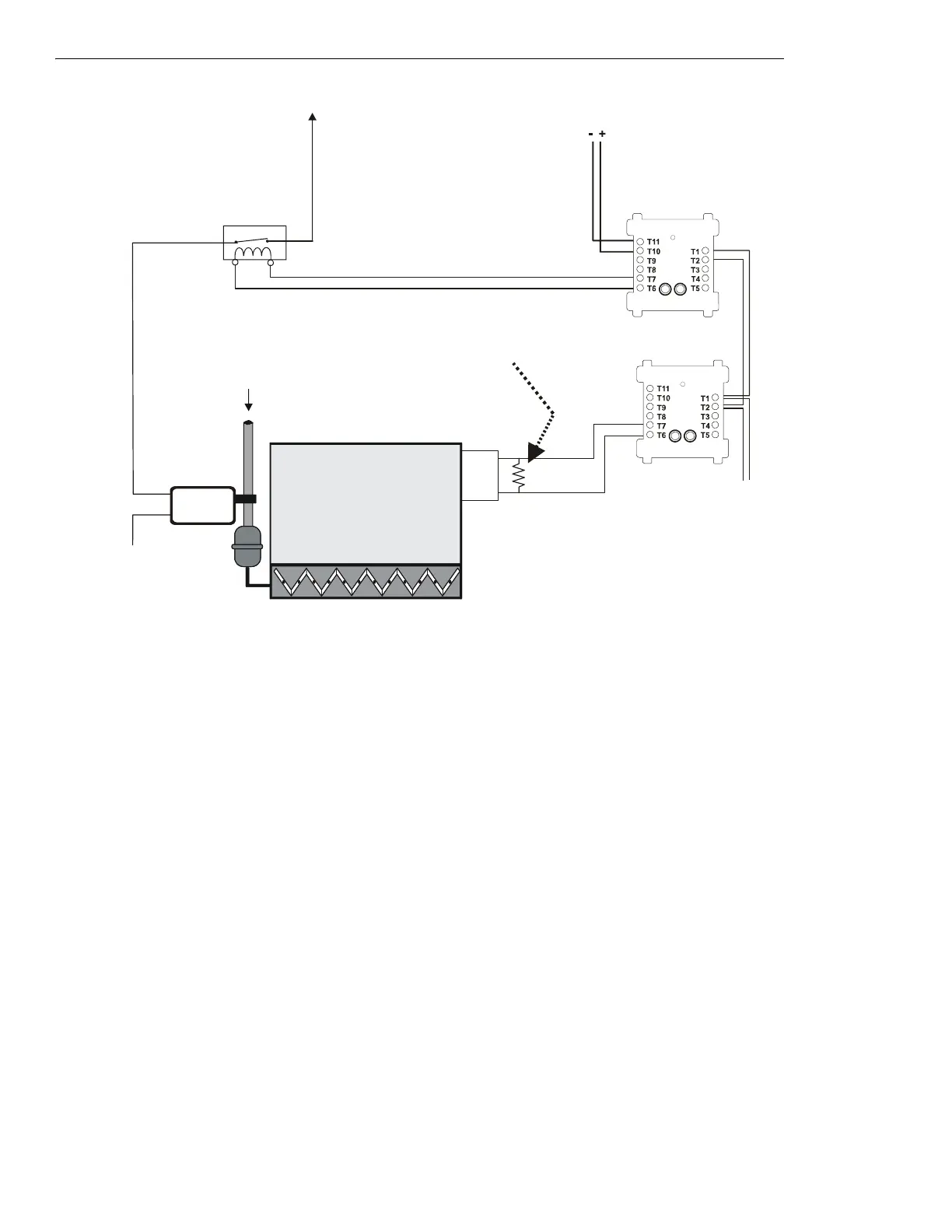

Figure 5.12 EP Damper Control, Dedicated System - FSCS Switch Group Type 2
Figure 5.12 depicts an EP damper in a dedicated system with the capability of
CLOSED control and verification of the OPEN state, switch
group type 2. In the above configuration, the CON
OFF⁄CL
CM is activated. The CON
OFF⁄CL
CM controls a normally open contactor for the
pressure switch power. When the CON
OFF⁄CL
CM is activated, the normally open contactor is closed, thus supplying power to close the
damper. When the damper completely closes, the damper closed limit switch is CLOSED, indicating that the damper is in the CLOSED position,
and the damper open limit switch is OPEN. The VER
ON⁄OP
MM monitors the CLOSED position of the damper open limit switch. In this case the
VER
ON⁄OP
MM is deactivated because the damper is CLOSED.
Airflow
PRESSURE
SWITCH
SMOKE
DAMPER
CLOSED
1a listed
contactor
Power Source
Listed
24 VDC
Power Source
SLC Loop
FCM-1
CON
OFF/CL
CM
(activated)
DEP-dF2A-fs-2.wmf
Power
Return
VER
ON⁄OP
MM
(deactivated)
FMM-1
N/O
COM
Limit Switch
for open
position
ELR-47K
(use 3.9K listed ELR with FZM-1)
Pneumatic
Tubing
*If the SLC device
does not match the
one in this figure, refer
to the SLC manual
appendix, which
contains wiring
conversion charts for
type V and type H
modules.
