132 SCS Series Manual — P/N 15712:L 7/18/16
Ratings and Wiring Diagrams Non-dedicated Smoke Control System Wiring Diagrams
5.4.2 Motorized Dampers

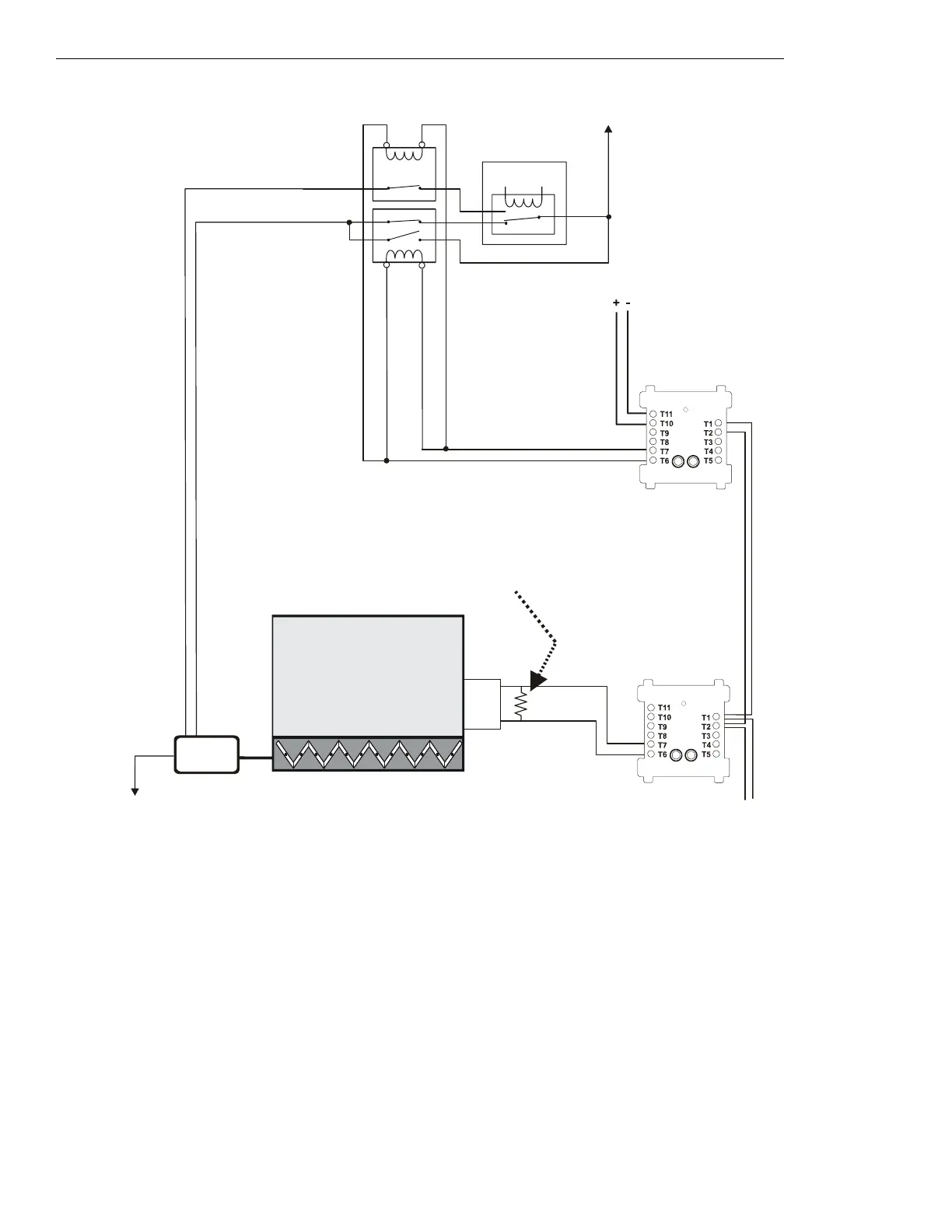

Figure 5.23 Motorized Damper Control
Non-dedicated System - FSCS Switch Group Type 1
Figure 5.23 depicts a motorized damper in a non-dedicated system with the capability of
CLOSED control and verification of the CLOSED
state, switch group type 1. In the above configuration, the CON
OFF⁄CL
CM is deactivated. The CON
OFF⁄CL
CM controls two contactors: a nor-
mally closed contactor for the damper open power line, and a dual normally open/normally closed contactor for the damper close power.
When the CON
OFF⁄CL
CM is activated, the normally closed contactor is opened (cutting any power supplied by the EMS to the damper open
power line), the normally closed portion of the dual contactor is opened (cutting any power supplied by the EMS to the damper closed power
line), and the normally open portion of the dual contactor is closed, thus supplying power to close the damper. When the CON
OFF⁄CL
CM is
deactivated, the EMS is free to control the damper. The EMS is currently supplying power to the damper closed power line.
When power is supplied to the damper closed power line, the damper closes. When the damper completely closes, the damper closed limit
switch is
CLOSED, indicating that the damper is in the CLOSED position. The VER
OFF⁄CL
MM monitors the CLOSED position of the damper
closed limit switch. In this case the VER
OFF⁄CL
MM is activated because the damper is CLOSED.
Power Source
1a, 1b listed
contactor
Damper
Open
Power
ELR-47K
(use 3.9K listed ELR with FZM-1)
N/O
COM
Power Return
Listed
24 VDC
Power Source
FMM-1
DMO-nf1a-fs-2.wmf
1b listed
contactor
CON
OFF/CL
CM
(deactivated)
VER
OFF/CL
MM
(activated)
Limit Switch
for closed
position
Damper
Closed
Power
AC
MOTOR
DAMPER
CLOSED
FCM-1
Energy
Management
System
SLC Loop
*If the SLC device does
not match the one in
this figure, refer to the
SLC manual appendix,
which contains wiring
conversion charts for
type V and type H
modules.
