Honeywell NOTIFIER SCS Series User Manual

144 SCS Series Manual — P/N 15712:L 7/18/16
Ratings and Wiring Diagrams Non-dedicated Smoke Control System Wiring Diagrams

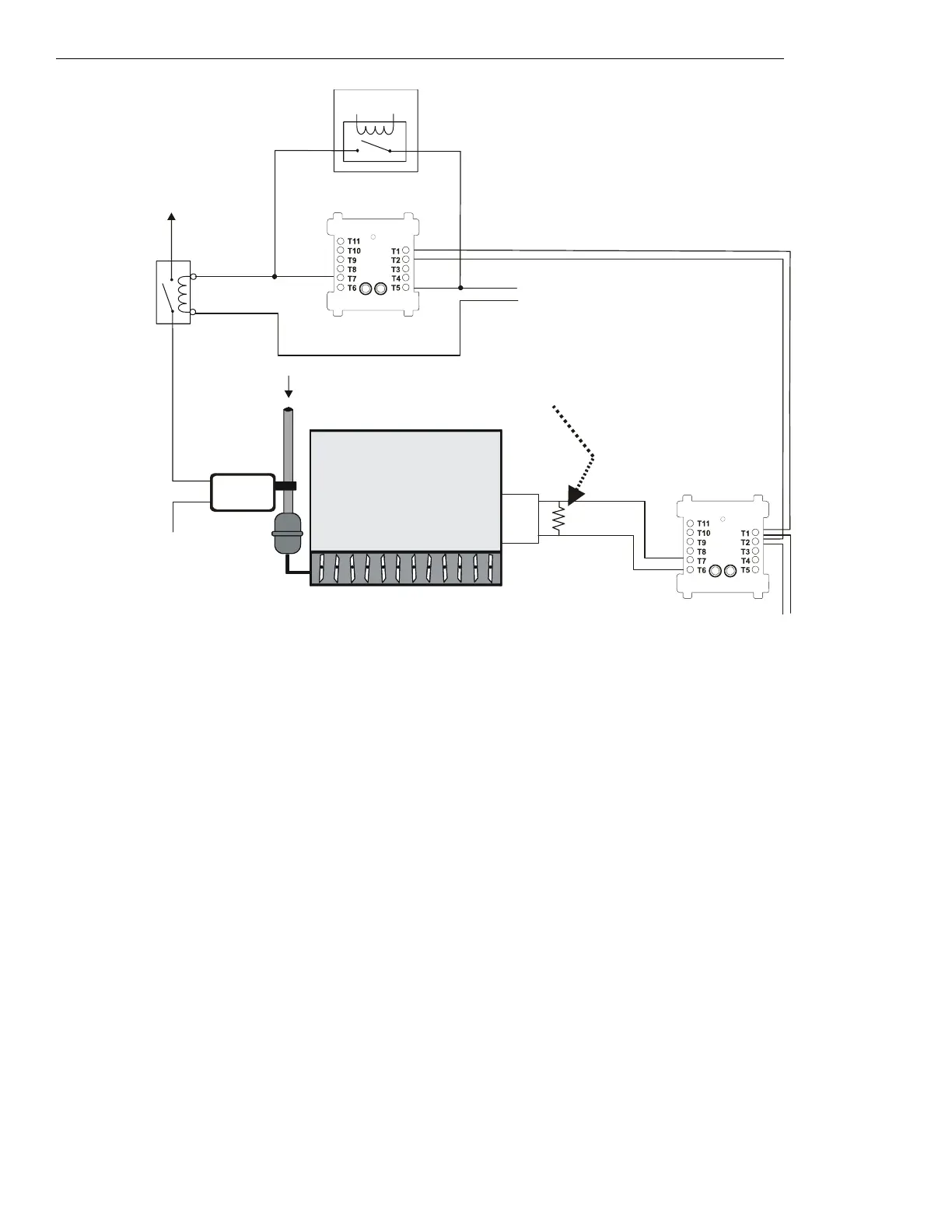

Figure 5.35 EP Damper Control, Non-dedicated System - FSCS Switch Group Type 4
Figure 5.35 depicts an EP damper in a non-dedicated system with the capability of
OPEN control and verification of the CLOSED state, switch
group type 4. In the above configuration, the CON
ON⁄OP
CM is activated. The CON
ON⁄OP
CM controls a normally closed contactor for the
pressure switch power line. When CON
ON⁄OP
CM is activated, the normally closed contactor is opened. When the contactor opens, power is
cut from the pressure switch, which allows airflow to open the damper. When the CON
ON⁄OP
CM is deactivated, the EMS is free to control
the damper. The EMS is currently being overridden by the CON
ON⁄OP
CM.
When power is cut from the pressure switch, the damper opens. When the damper completely opens, the damper open limit switch is
CLOSED
and the damper closed limit switch is
OPEN, indicating that the damper is in the OPEN position. The VER
OFF⁄CL
MM monitors the CLOSED
position of the limit switch. In this case the VER
OFF⁄CL
MM is deactivated because the damper is OPEN.
FMM-1
Airflow
PRESSURE
SWITCH
SMOKE
DAMPER
OPEN
Power
Source
Listed
24 VDC
Power Source
SLC Loop
DEP-NF4A-fs-2.wmf
Power
Return
VER
OFF⁄CL
MM
(deactivated)
N/O
COM
Limit Switch
for closed
position
ELR-47K
(use 3.9K listed ELR with FZM-1)
Pneumatic
Tubing
Energy
Management
System
1b listed
contact
FRM-1
CON
ON/OP
CM
(activated)
*If the SLC device
does not match the
one in this figure, refer
to the SLC manual
appendix, which
contains wiring
conversion charts for
type V and type H
modules.
