Ratings and Wiring Diagrams Non-dedicated Smoke Control System Wiring Diagrams

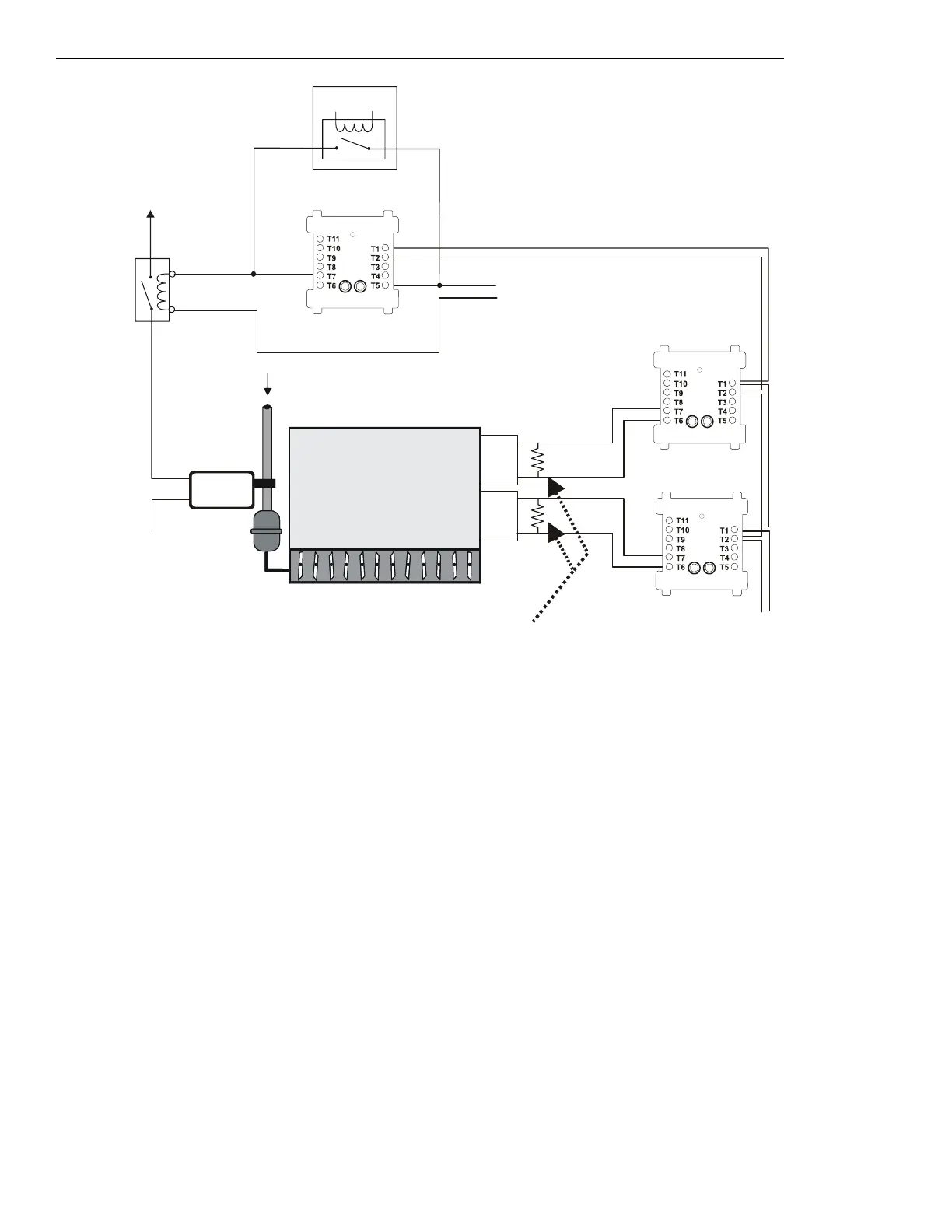

Figure 5.37 EP Damper Control, Non-dedicated System - FSCS Switch Group Type 6
Figure 5.37 depicts an EP damper in a non-dedicated system with the capability of
OPEN control and verification of the OPEN and CLOSED
state, switch group type 6. In the above configuration, the CON
ON⁄OP
CM is activated. The CON
ON⁄OP
CM controls a normally closed contac-
tor for the pressure switch power line. When the CON
ON⁄OP
CM is activated, the normally closed contactor is opened. When the contactor
opens, power is cut from the pressure switch which allows airflow to open the damper. When the CON
ON⁄OP
CM is deactivated, the EMS is
free to control the damper. The EMS is currently being overridden by the CON
ON⁄OP
CM.
When power is cut from the pressure switch, the damper opens. When the damper completely opens, the damper open limit switch is
CLOSED
and the damper closed limit switch is
OPEN, indicating that the damper is in the OPEN position. The VER
ON⁄OP
MM monitors the CLOSED
position of the damper open limit switch and the VER
OFF⁄CL
MM monitors the CLOSED position of the damper closed limit switch. In this
case the VER
ON⁄OP
MM is activated and the VER
OFF⁄CL
MM is deactivated because the damper is OPEN.
