56 SCS Series Manual — P/N 15712:L 7/18/16
The SCS⁄SCE Configuration
5 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 1 switch groups require one control module and one monitor module.
Type 1 switch groups can be used for fans or dampers. The control module is used for OFF control of
a fan and the monitor module is used for the OFF verification of the fan.
6 When used with an SCE, all 16 switch groups are
available for group type 1 operation. Type 1 switch
groups require one control module and one monitor
module. Type 1 switch groups can be used for fans or
dampers. The control module is used for OFF control
of a fan and the monitor module is used for the OFF verification of the fan.
7 When used with an SCE, all 16 switch groups are
available for group type 2 operation. Type 2 switch
groups require one control module and one monitor
module. Type 2 switch groups can be used for fans or
dampers. The control module is used for OFF control
of a fan and the monitor module is used for the ON verification of the fan.
8 When used with an SCE, all 16 switch groups are
available for group type 3 operation. Type 3 switch
groups require one control module and two monitor
modules. Type 3 switch groups are usually only used
for dampers. The control module is used for CLOSED
control of a damper, one monitor module is used for the OPEN verification of the damper and the
other monitor module is used for the CLOSED verification of the damper.
9 When used with an SCE, eight switch groups are
available for group type 8 operation and eight are
available for group type 2 operation in the format
shown to the left. Type 8 switch groups require two
control modules and one monitor module. Type 8
switch groups can be used for fans or dampers. One control module is used for the ON control of the
fan, the other control module is used for the OFF control. The monitor module is used for the ON
verification of the fan. Type 2 switch groups require one control module and one monitor module.
Type 2 switch groups can be used for fans or dampers. The control module is used for OFF control of
a fan and the monitor module is used for the ON verification of the fan.
10 When used with an SCE, all 16 switch groups are
available for group type 4 operation. Type 4 switch
groups require one control module and one monitor
module. Type 4 switch groups can be used for fans or
dampers. The control module is used for ON control of
a fan and the monitor module is used for the OFF verification of the fan.

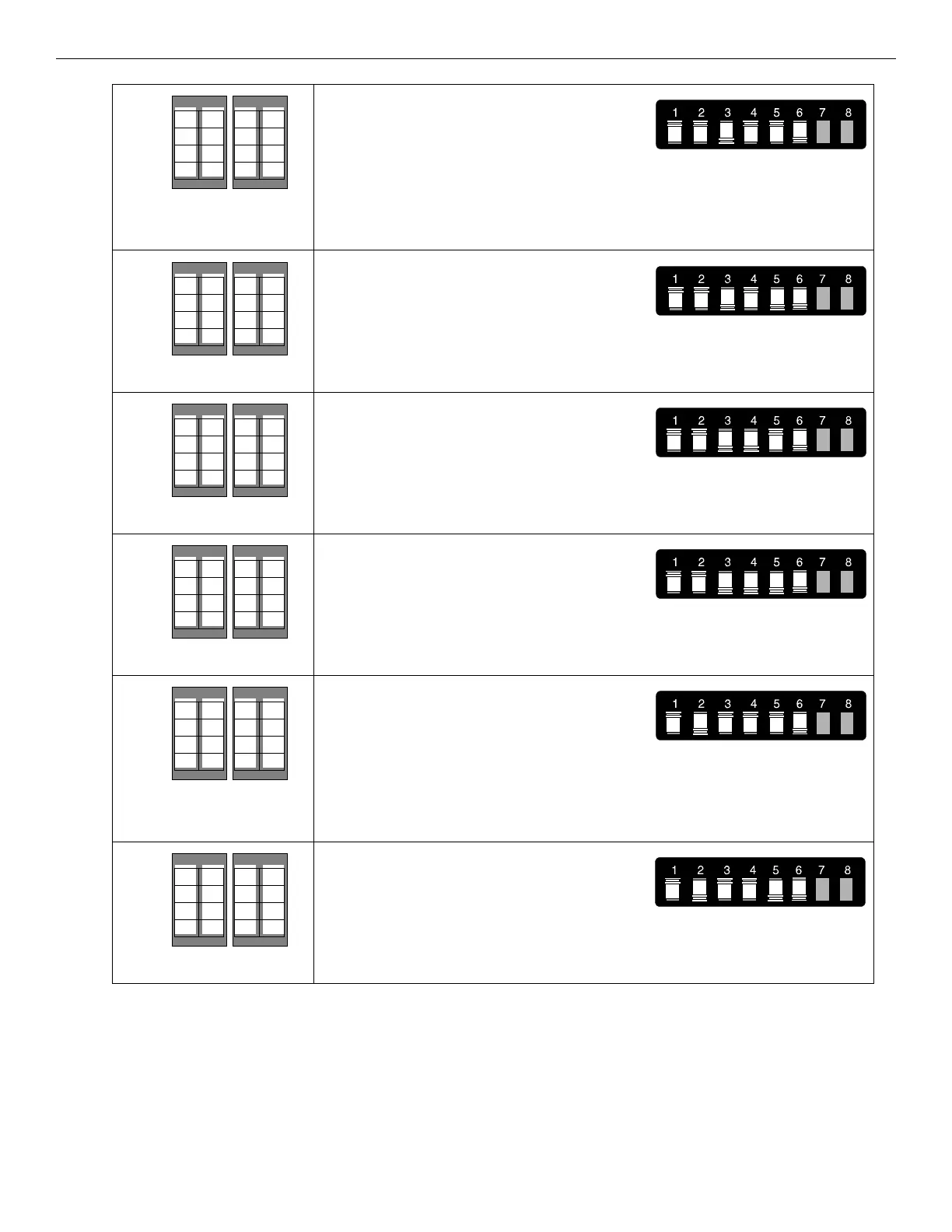

Table 3.5 FSCS Mode Dipswitch Settings (2 of 6)
*
81 18
81 18
81 18
81 18
SCS-8 SCE-8
OFF
ON
11 11
11 11
11 11
11 11
SCS-8 SCE-8
OFF
ON
22 22
22 22
22 22
22 22
SCS-8 SCE-8
OFF
ON
33 33
33 33
33 33
33 33
SCS-8 SCE-8
OFF
ON
82 28
82 28
82 28
82 28
SCS-8 SCE-8
OFF
ON
44 44
44 44
44 44
44 44
SCS-8 SCE-8
OFF
ON
