68 SCS Series Manual — P/N 15712:L 7/18/16
The SCS⁄SCE Configuration
8 When used with an SCE, all 16 switch groups are
available for group type 7 operation. Type 7 switch
groups require one control module and two monitor
modules. Type 7 switch groups are usually only used
for dampers. The control module is used for CLOSED
control of a damper, one monitor module is used for the OPEN verification of the damper and the
other monitor module is used for the CLOSED verification of the damper.
9 When used with an SCE, all 16 switch groups are
available for group type 8 operation. Type 8 switch
groups require one control module. Type 8 switch
groups can be used for fans or dampers. The control
module is used for ON control of a fan.
10 When used with an SCE, all 16 switch groups are
available for group type 9 operation. Type 9 switch
groups require one control module and one monitor
module. Type 9 switch groups can be used for fans or
dampers. The control module is used for ON control
of a fan and the monitor module is used for the OFF verification of the fan.
11 When used with an SCE, all 16 switch groups are
available for group type 10 operation. Type 10 switch
groups require one control module and one monitor
module. Type 10 switch groups can be used for fans
or dampers. The control module is used for ON
control of a fan and the monitor module is used for the ON verification of the fan.
12 When used with an SCE, all 16 switch groups are
available for group type 11 operation. Type 11 switch
groups require one control module and two monitor
modules. Type 11 switch groups are usually only
used for dampers. The control module is used for
OPEN control of a damper, one monitor module is used for the OPEN verification of the damper
and the other monitor module is used for the CLOSED verification of the damper.
13 When used with an SCE, all 16 switch groups are
available for group type 12 operation. Type 12 switch
groups require two control modules. Type 12 switch
groups are usually only used for fans. One control
module is used for OFF control of a fan and the other
is used for ON control of the fan.
14 When used with an SCE, all 16 switch groups are
available for group type 13 operation. Type 13 switch
groups require two control modules and one monitor
module. Type 13 switch groups are usually only used
for fans. One control module is used for OFF control
of a fan and the other is used for ON control of the fan. The monitor module is used for the OFF
verification of the fan.

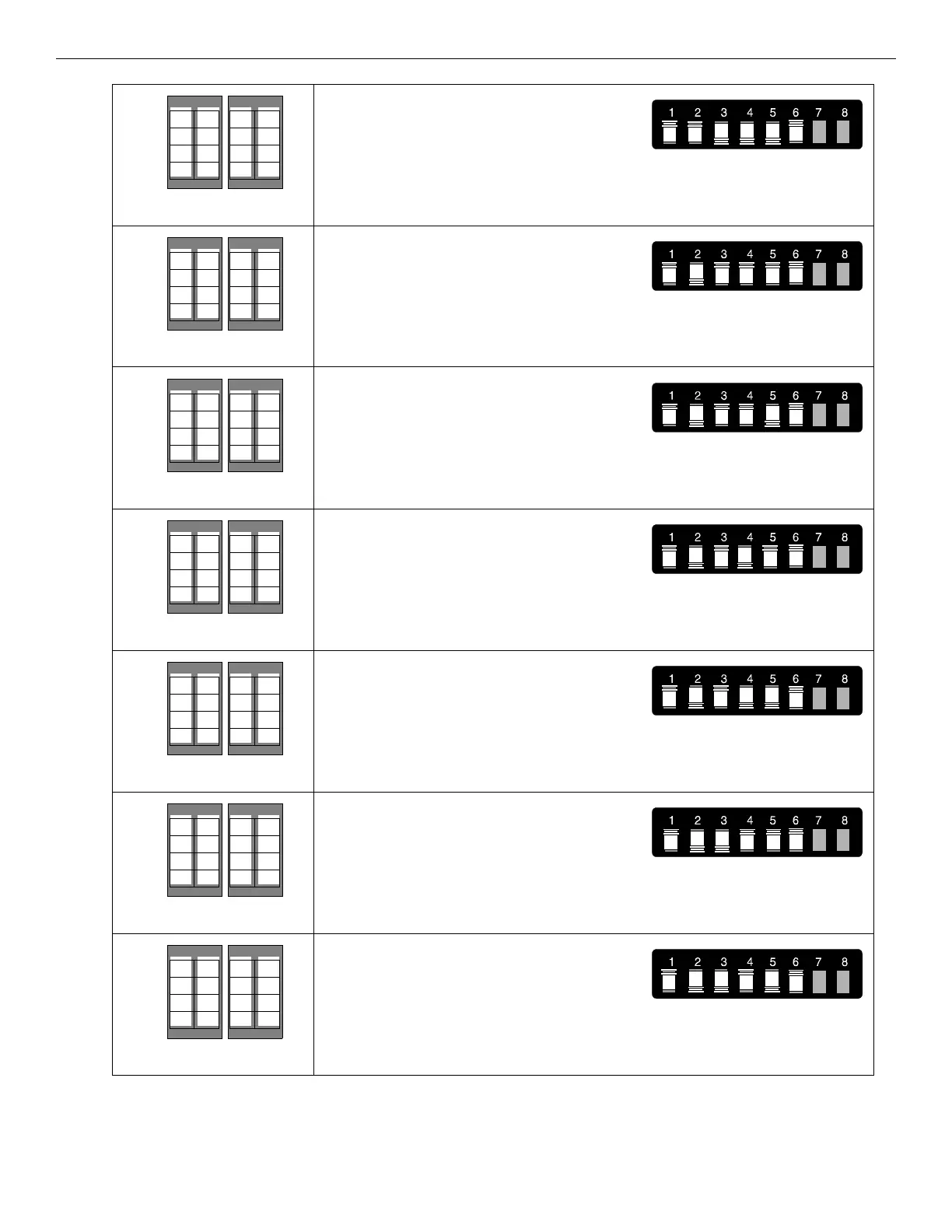

Table 3.10 HVAC Mode Dipswitch Settings (2 of 5)
77 77
77 77
77 77
77 77
SCS-8 SCE-8
OFF
ON
88 88
88 88
88 88
88 88
SCS-8 SCE-8
OFF
ON
99 99
99 99
99 99
99 99
SCS-8 SCE-8
OFF
ON
10 10 10 10
10 10 10 10
10 10 10 10
10 10 10 10
SCS-8 SCE-8
OFF
ON
11 11 11 11
11 11 11 11
11 11 11 11
11 11 11 11
SCS-8 SCE-8
OFF
ON
12 12 12 12
12 12 12 12
12 12 12 12
12 12 12 12
SCS-8 SCE-8
OFF
ON
13 13 13 13
13 13 13 13
13 13 13 13
13 13 13 13
SCS-8 SCE-8
OFF
ON
