UDACT-2 — Instruction Manual P/N 54089:B3 10/29/2019 15
Installation Options Installation and Wiring
CHS-4L
The UDACT-2 may be mounted in the CHS-4L chassis within the control panel backbox as described and shown below.
CA-1
The UDACT-2 may be mounted in the CA-1 chassis behind the DVC or NCA-2 as described and shown below.
NOTE: The UDACT-2 can be mounted only in one of the front positions of this chassis.
Step Action
1 Disconnect AC power and disconnect batteries.
2 Insert the tab at the bottom of the board into the chassis slot as indicated.
3 Position the UDACT-2 on the standoffs and fasten with #4 screws.
NOTE: The UDACT-2 can be mounted in one of the rear positions of this chassis.
Step Action
1 Disconnect AC power and disconnect batteries.
2 Position the UDACT-2 on the standoffs and fasten with #4 screws.

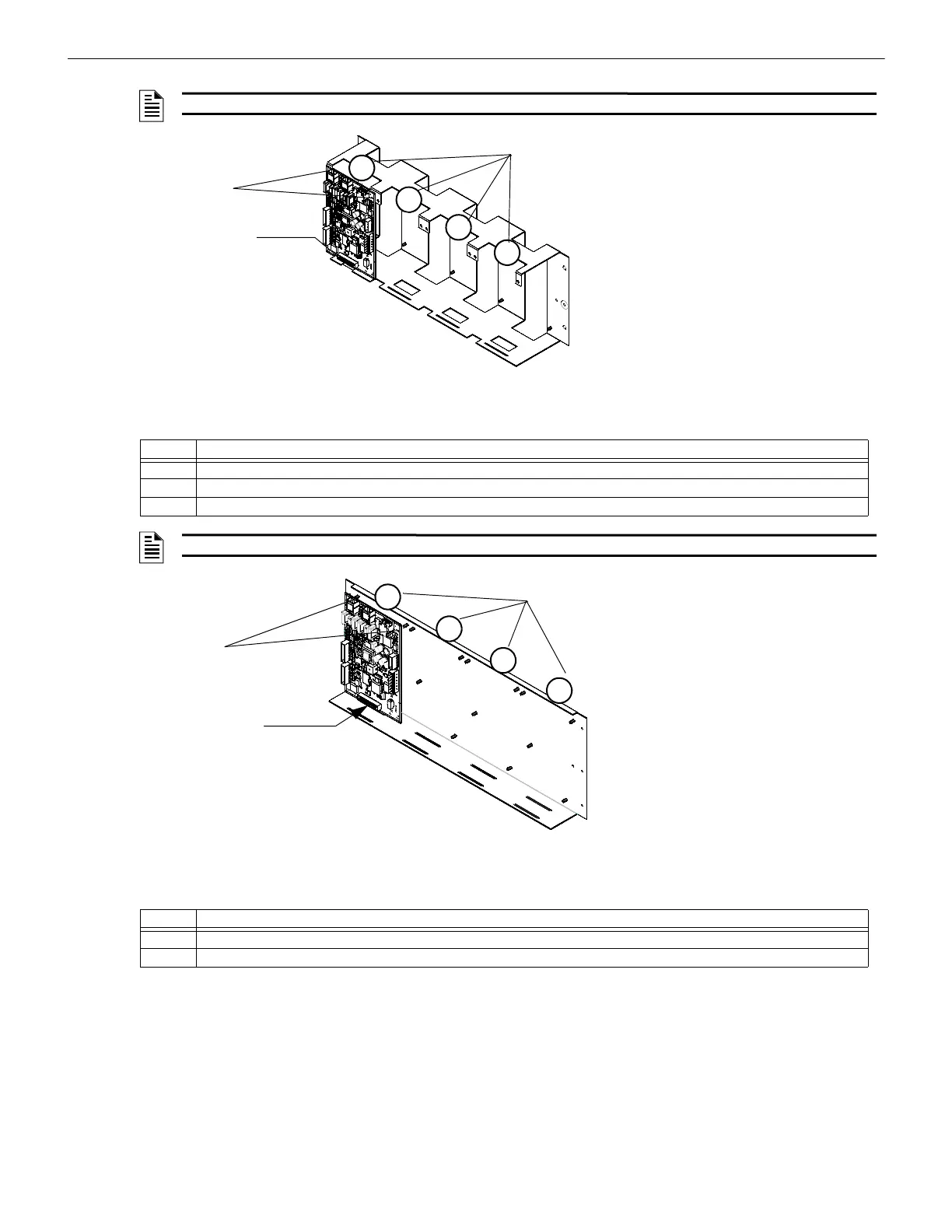

Figure 2.4 CHS-4 Installation
UDACT-2_CHS-4.wmf
Chassis slot
Screws
Four Possible Mounting Positions
1
2
3
4
Figure 2.5 CHS-4L Installation
Four Possible Mounting Positions
UDACT-2_CHS-4L.wmf
Chassis slot
Screws
1
2
3
4
