16 UDACT-2 — Instruction Manual P/N 54089:B3 10/29/2019
Installation and Wiring Installation Options
Figure 2.6 CA-1 Installation
CA-2
The UDACT-2 may be mounted in the CA-2 chassis behind the DVC, NFS2-3030 or NCA-2 as described and shown below.
CHS-M3
The UDACT-2 can mount in back of an NFS2-3030, or on one of the front mounting spaces to the right of it.
Mounting in back of an NFS2-3030:
Mounting to the right of an NFS2-3030:
Step Action
1 Disconnect AC power and disconnect batteries.
2 Position the UDACT-2 on the standoffs and fasten with #4 screws.
Step Action
1 Disconnect AC power and disconnect batteries.
2 Position the UDACT-2 on the standoffs and fasten with four #4 screws.
Step Action
1 Disconnect AC power and disconnect batteries.
2 Insert the tab at the bottom of the board into the chassis slot as indicated.
3 Position the UDACT-2 on the standoffs and fasten with two #4 screws.

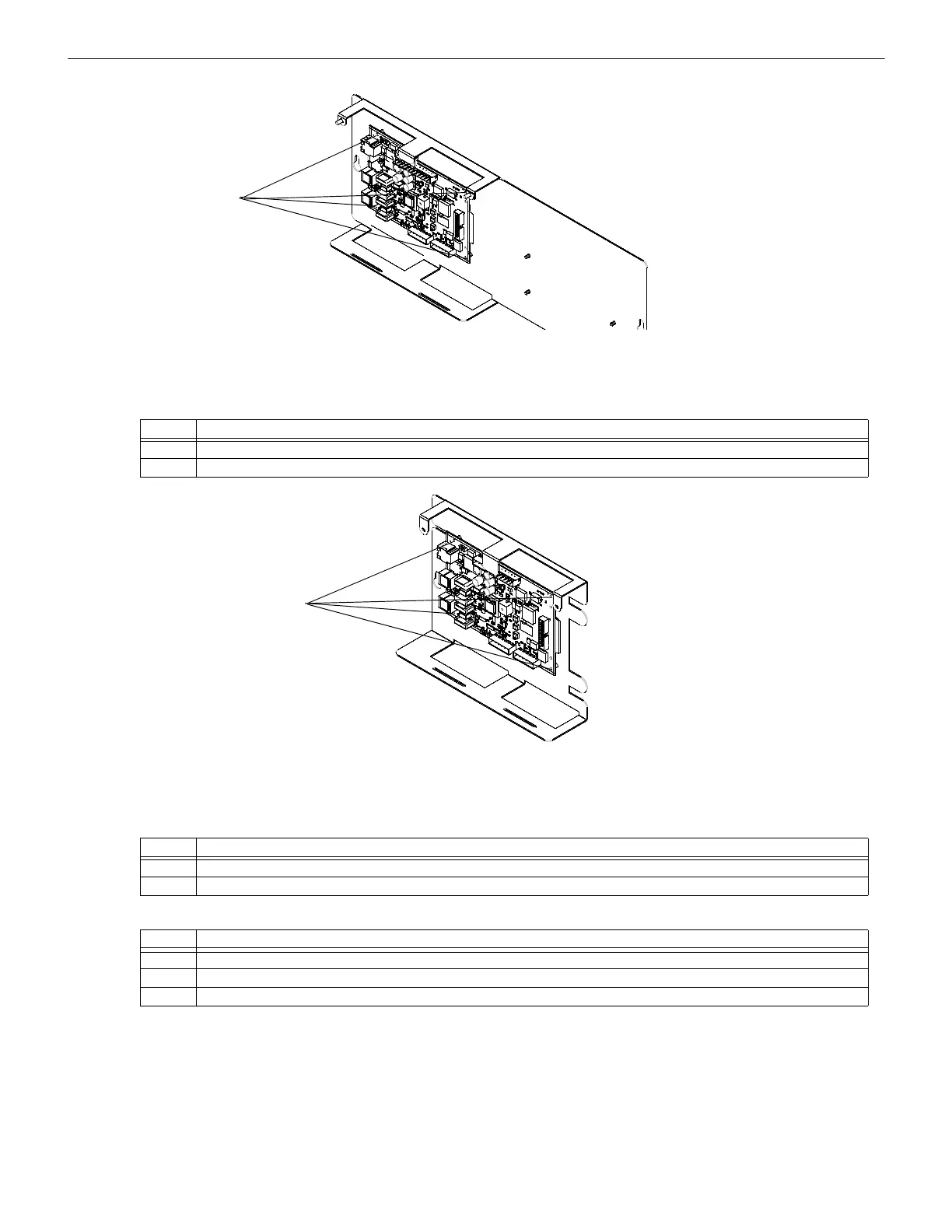

Figure 2.7 CA-2 Installation
UDACT-2_CA-2.wmf
Screws
To Next Page
