18 UDACT-2 — Instruction Manual P/N 54089:B3 10/29/2019
Installation and Wiring Installation Options
ABS-8RB
The UDACT-2 comes with an insulating barrier that must be used in this installation.
UBS-1B and UBS-1R
These cabinets come with door and UDACT-2 mounting plate. The mounting plate comes attached to the backbox.
Step Action
1 Place the UDACT-2 inside the folds of the insulating barrier, as shown below.
2 Align the UDACT-2 and insulating barrier over the four (4) threaded standoffs at the back of the ABS-8RB enclosure.
3 Secure using the four (4) screws supplied with the enclosure. Tighten securely.
4 After completion of connections and programming, secure cover to ABS-8RB box with two (2) screws. Tighten securely.
Step Action
1 Align the UDACT-2 over the four (4) threaded standoffs at the back of the UBS-1B/R enclosure.
2 Secure using the four (4) screws supplied with the UDACT-2. Tighten securely.
UDACT-2.wmf
Threaded Standoff
Mounting Holes
Mounting Holes
ABS-8RB

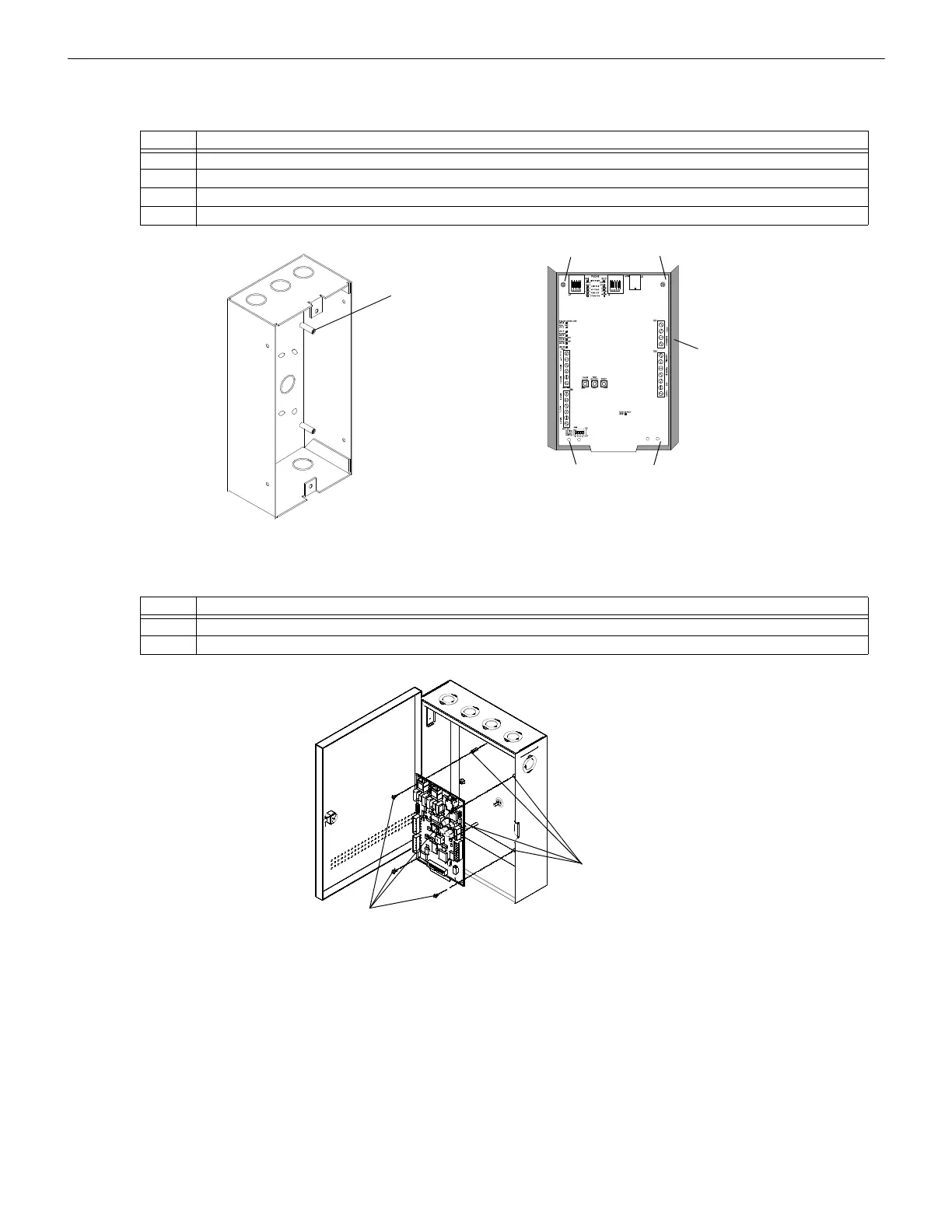

Figure 2.10 ABS-8RB Installation
abs8rb w insul barrier.wmf
Insulating
Barrier
Threaded Standoff
Screws
Figure 2.11 UBS-1B/R Installation
