96 PX4i and PX6i High Performance Printer User Guide

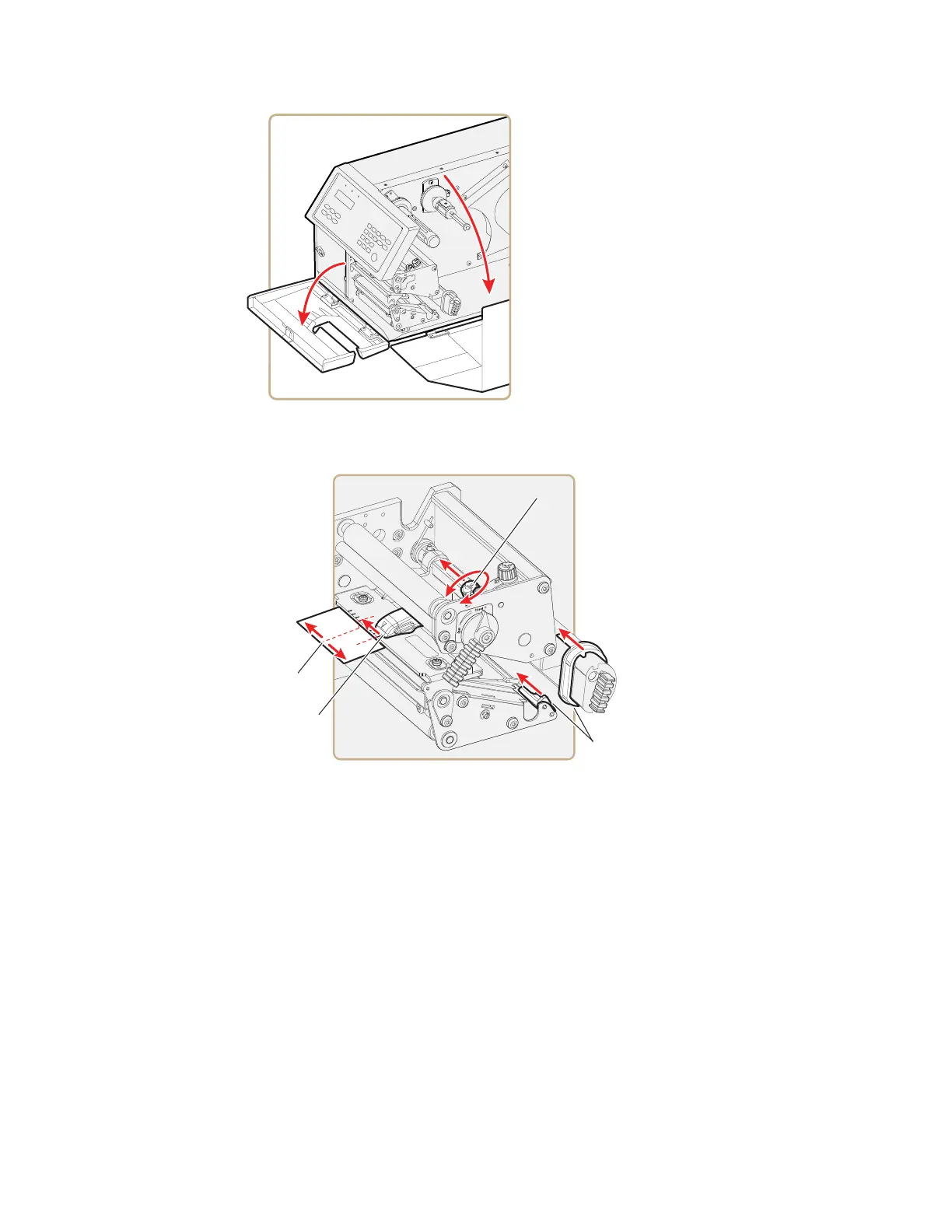

2. Open the front door and media cover.
3. If necessary, remove the ribbon.
4. Loosen the knob that secures the pressure arm.
5. Move the pressure arm inward or outward until the arrow on the tip of the arm is
centered with the media.
Note: Move the pressure arm at the part closest to the knob, not at the tip. If the arm is
difficult to move, lift the printhead and pull the printhead bracket free from the
magnet in the arm.
6. When the pressure arm is centered, tighten the knob to secure the arm.
7. Adjust the edge guides.
8. If necessary, load ribbon.
9. Close the front door and media cover.
Center of
media
Pressure arm
Knob
Edge guides

Honeywell PX4i Specifications

General

Print Technology	Thermal Transfer
Resolution	300 dpi
Max Print Width	4.09 inches
Max Print Speed	10 ips (inches per second)
Connectivity	USB, Serial, Ethernet
Memory	16 MB Flash, 32 MB SDRAM
Supported Media Types	Labels, tags
Supported Media Width	19 mm (0.75 in) to 110 mm (4.33 in)
