Honeywell PX4i User Manual

108 PX4i and PX6i High Performance Printer User Guide

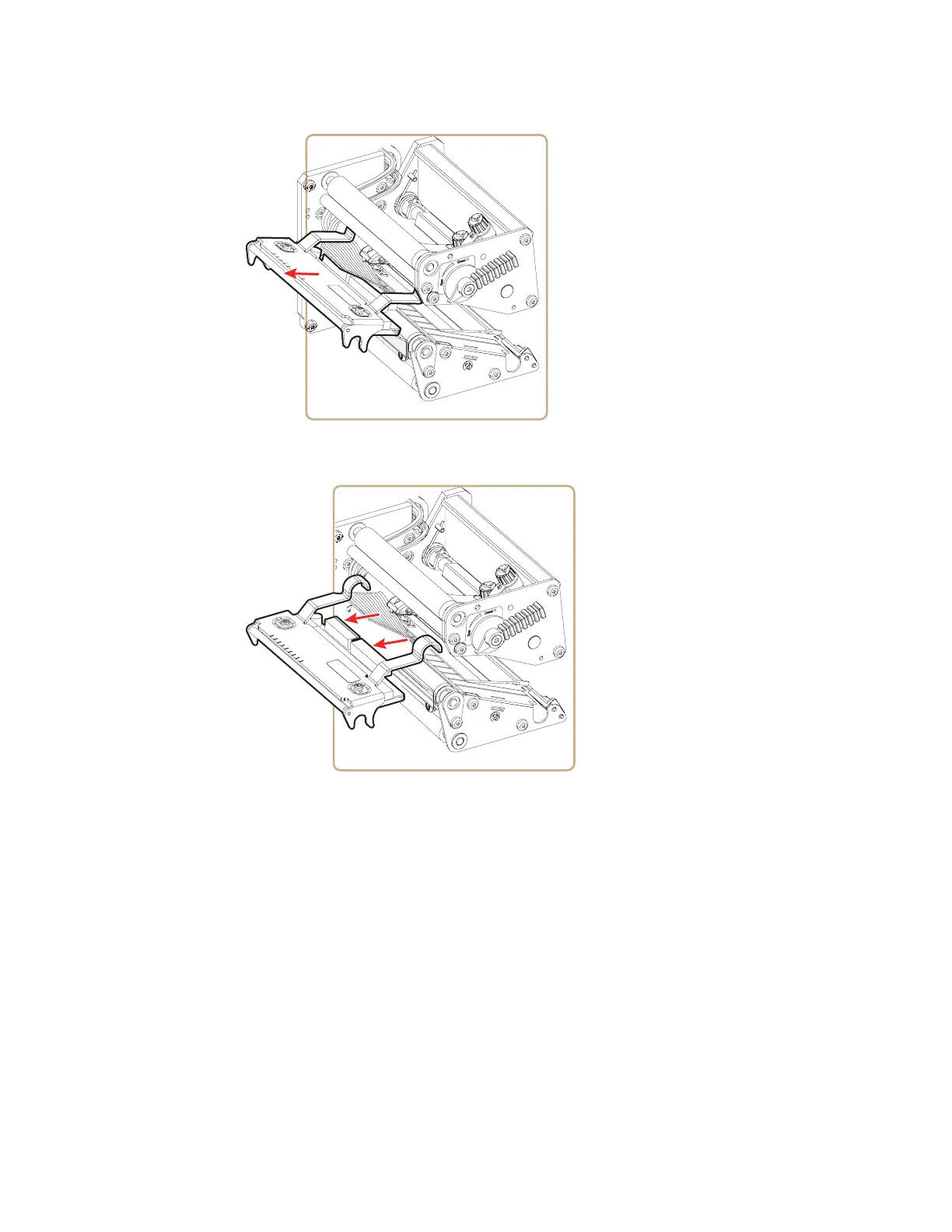

7. Disconnect the hooks of the printhead bracket from the shaft, and pull out the
printhead as far as the cables allow.
8. Disconnect the cables from the printhead. Note the snap-lock on the inner
connector. Pull at the connectors, not at the cables.

Honeywell PX4i Specifications

General

Print Technology	Thermal Transfer
Resolution	300 dpi
Max Print Width	4.09 inches
Max Print Speed	10 ips (inches per second)
Connectivity	USB, Serial, Ethernet
Memory	16 MB Flash, 32 MB SDRAM
Supported Media Types	Labels, tags
Supported Media Width	19 mm (0.75 in) to 110 mm (4.33 in)
