69-2500—01 2
R7284 SERIES

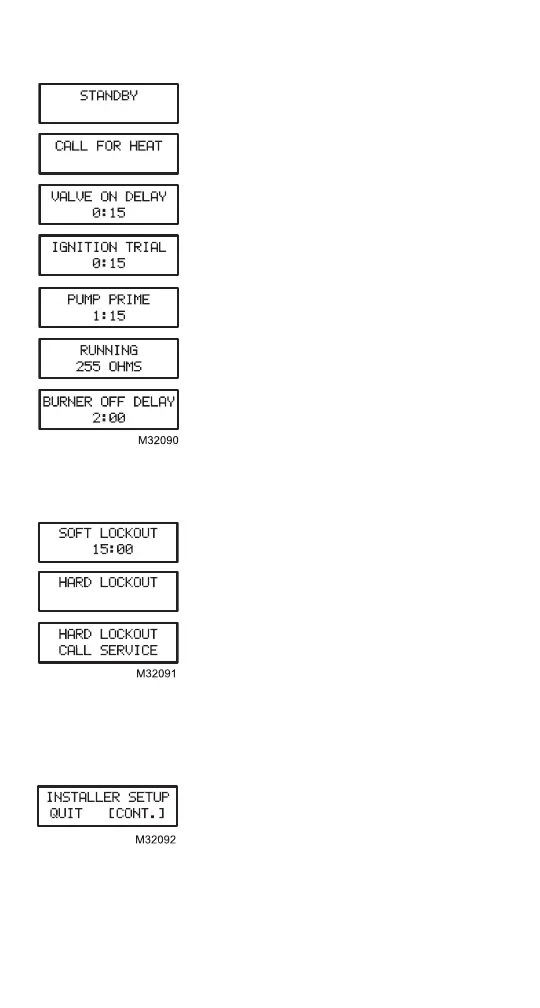

Below is a typical progression of screens through a normal cycle.
Pressing up or down during the Ignition Trial
enters pump prime.
Each press of the up button adds a minute,
each press of the down button subtracts a
minute from the pump prime time.
If at any point there is an event generating a lockout, one of the
following screens will be displayed.
Control is in Soft Lockout. Control will
recover when error clears or after specified
time.
Control is in Hard Lockout. Hold “i” for at
least 2 seconds to reset.
Hold the “i” button longer than 10 seconds
to return to Standby.
Installer Setup (Advanced Interface)
Installer setup is entered by pushing all three buttons
simultaneously for 2 seconds.
If QUIT is selected, an “i” button press
displays the Re-baseline option.
If CONT is selected, an “i” button press
goes to “Installer Setup”.
NOTE: Not all parameters are adjustable in all models. Parame-
ters not available for adjustment will display “Locked”
when an attempt is made to modify them.
