R7284 SERIES

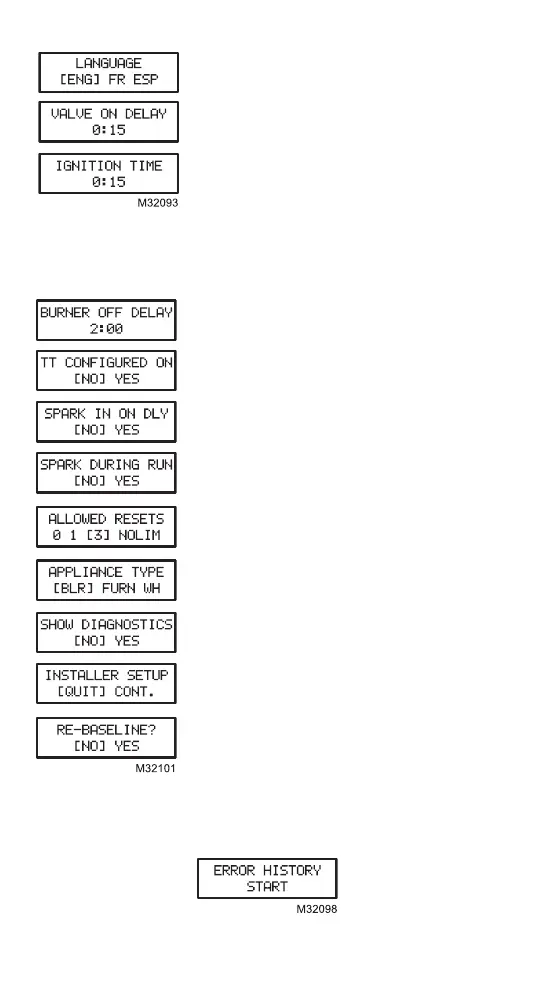

Select between English, French, or Spanish
by using the up or down buttons and the “i”
button to select
Adjustment of the Valve On Delay in five
second increments.
Ignition (lockout) Time adjustment.
NOTE: The Ignition Time is only available for adjustment during
the first 100 cycles of operation. After 100 cycles the
Ignition Time is locked in and can no longer be adjusted.
Adjustment of the Burner Off Delay. Burner
Off Delay can be adjusted in 15 second
increments from 0 to 8 minutes.
Configuration of the TT terminals vs. an
“internal jumper.” This option allows you to
jumper the TT terminals electronically so no
physical jumper is needed.
Controls sparking during On Delay period.
Controls sparking during Run mode
(Interrupted vs. Intermittent ignition).
Number of resets allowed before Restricted
Lockout
Appliance configuration (boiler, furnace,
water heater) for EnviraCOM™.
Enable advanced diagnostics mode and
error history. Selecting NO allows access to
error history and diagnostics only by
entering Installer Setup.
Exit installer setup
If “QUIT” is selected, the user is prompted
with a screen asking if it is desired to re-
baseline the control.
Error History Screens (Advanced Interface)
For all Error History screens, pressing “i” returns to the Normal
Screen.
