69-2500—01 4
R7284 SERIES

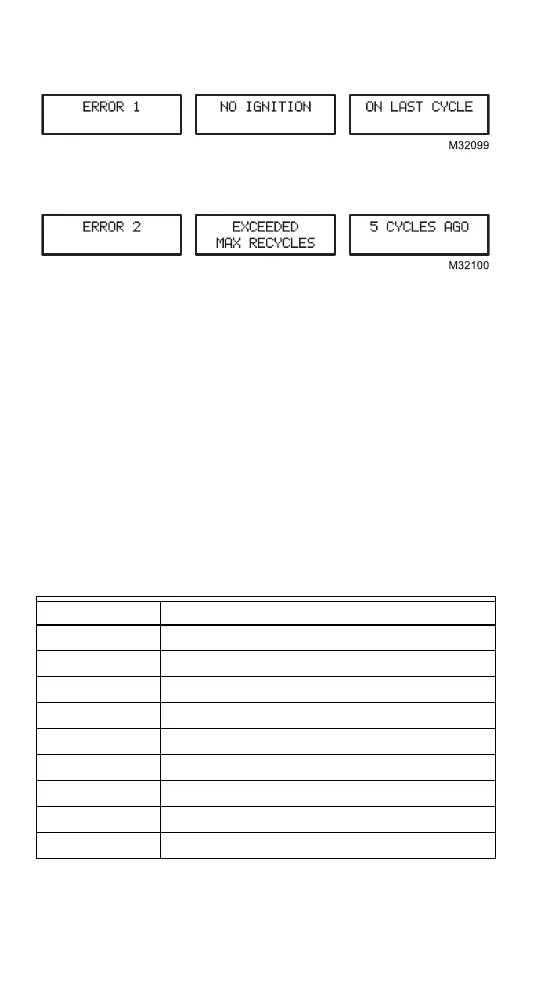

From the home screen, press the up button to display most recent
error.
Press the up button again to proceed to the next most recent error
or the down button to return to the previous error screen.
These three screens transition every 3 sec.
If no more errors are logged, the display shows “Error History
End.”
BASIC USER INTERFACE
The basic user interface consists of 3 buttons and an LED. Simple
diagnostic information can be obtained through the interaction of
the buttons and LED.
R7284 Status (Basic Interface)
Table 1. LED Codes.
Description LED Code
Standby Pulse (1/4 sec. ON, 4 sec OFF)
Call for Heat Heartbeat (1/2 sec bright, 1/2 sec dim) *
Flame proven On solid
Recycle 2 second ON, 2 second OFF flashing
Lockout 1/2 second on, 1/2 second OFF flashing
Interrupt OFF
“i” button Flame Strength Indication
Up button Most recent error
Down button Next most recent error

Honeywell R7284 Series Specifications

General

Type	Oil Primary Control
Frequency	50/60 Hz
Mounting	Panel or surface mount
Switch Action	SPDT
Ignition Type	Intermittent
Voltage	120V AC
Operating Temperature Range	-40°F to 150°F (-40°C to 65°C)
Display	LED
Flame Failure Response Time (FFRT)	0.8 seconds
Lockout	Manual reset
Approvals	UL, CSA
Voltage Rating	120V AC
