69-2206ES—05 6
Simplemente haga corresponder las etiquetas de los
cables.
Retire el empalme metálico si tiene los cables “R” y “Rc”.
MS28070
W2
Y2
C
G
Y
W
RC
R

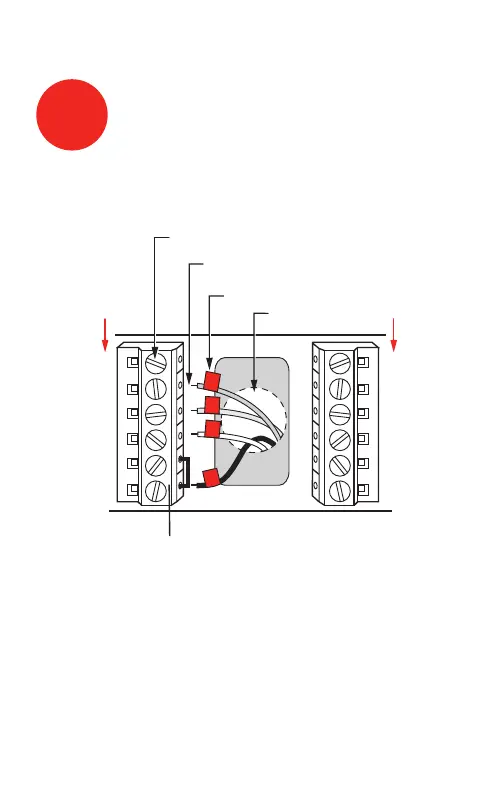

CABLES ETIQUETADOS
TORNILLO
CONVENCIONAL
INSERTE LOS CABLES Y
APRIETE LOS TORNILLOS
ORIFICIO DE
CABLEADO
Y
G
R
W
CONVENCIONAL
6
Conecte los cables
¿Los rótulos no coinciden? Vea la página 21.
¿Tiene un sistema de bomba de calor? Ver páginas
22-23.
Estamos aquí para ayudarle.
Llame al 1-800-468-1502 para asistencia con el
cableado.
