5 Planning Protections
Before mounting the detector, it is recommended to plan the mounting locations to achieve an
extremely high security level.
In general, the detectors should be mounted at the center of the detection range (see Table 2-1
Appl
ication Settings on page 2.) or on the positions where most of the attacks are aim
ed at.
Caution Please read TO THE INSTALLER first before planning protections.
Vaults
For vaults, including vault doors, strong room vaults and modular vaults, we recommend
mounting detectors:
On each wall
On the floor
On the ceiling inside the vault
On or inside the vault door

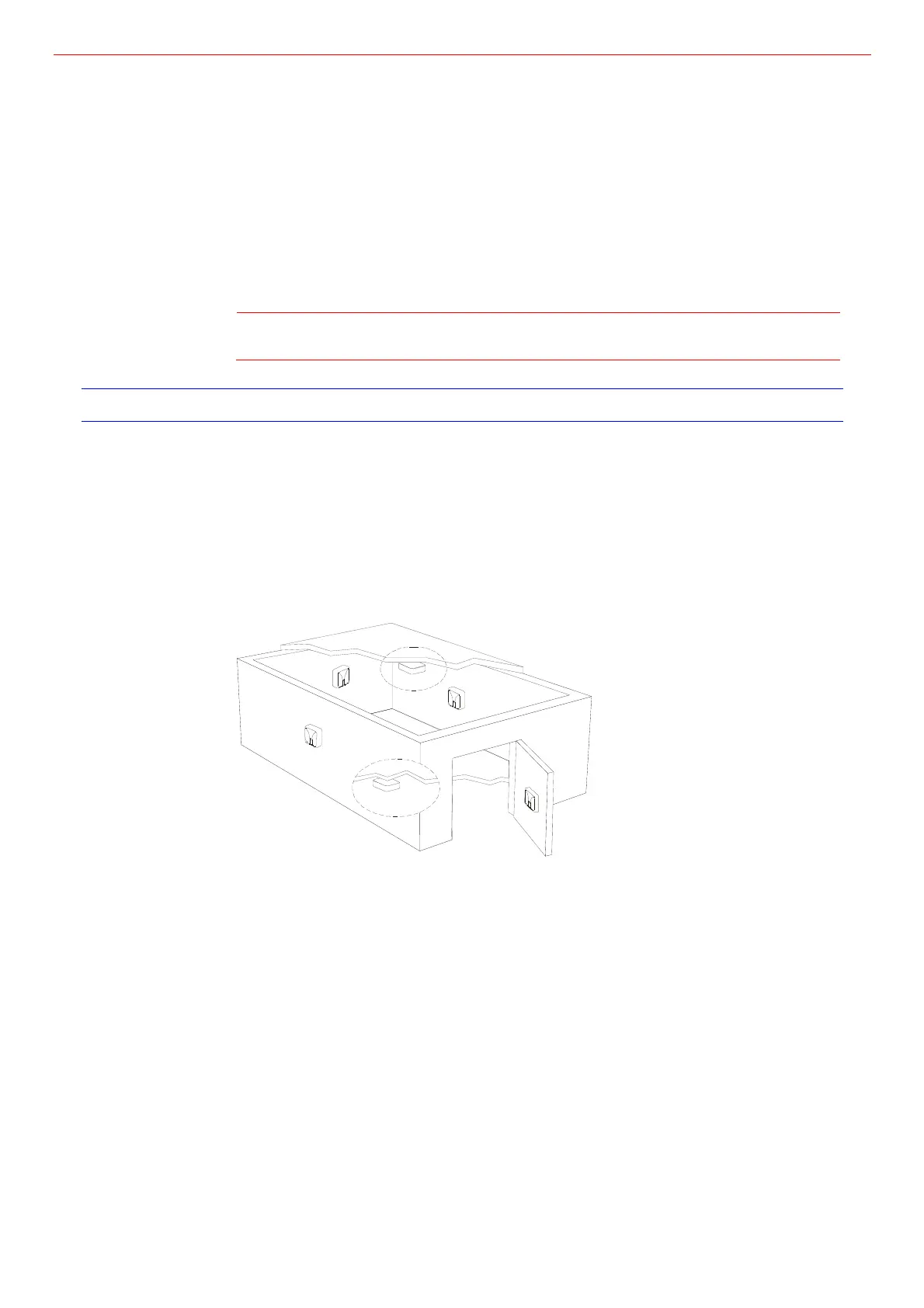

Figure 5-1 Planning Vaults Protection
The Mounting Plate SC110, the Recess Mounting Box SC116 and the Floor Mounting Box SC117
can be used to mount the detectors in the vaults. It is recommend mounting detectors at least
about 1,80m high to keep clear from lockers.
The sensitivity of the detectors can be set to G
high
or G
normal
according to actual applications.
Layout Plan
Layout Plan is used to help define the location of detectors mounted in the vaults. It is
recommended to prepare a layout plan before mounting the detectors according to the actual
construction. The figure below shows a sample for a vault with 7x5x3 meters.
